ifm EVC732, Right Angle Male 4 way M12 to Straight Female 5 way M12 Communication Cable, 1m

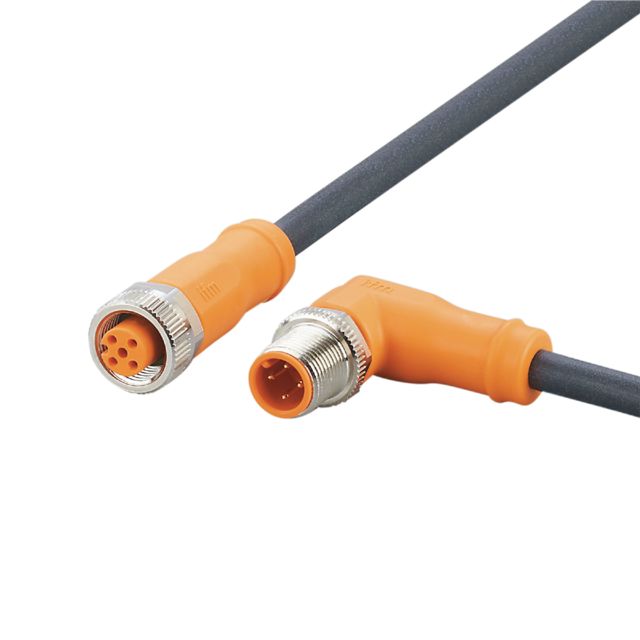

Name: ifm EVC732, Right Angle Male 4 way M12 to Straight Female 5 way M12 Communication Cable, 1m
Brand: ifm
SKU: EVC732
Availability: OutOfStock

Part Number : EVC732

Availability: Sold out

Detailed Description
Specifications

The ifm electronic connection cable is designed for robust performance in challenging environments. Engineered with advanced materials and innovative features, this cable ensures reliable connectivity and exceptional longevity. Its flexibility and durability make it ideal for dynamic applications, such as those in automated manufacturing and packaging. With an ambient temperature tolerance ranging from -25 to 90 degrees Celsius and a protective rating up to IP69K, this cable can withstand the rigours of industrial settings while maintaining optimal functionality. The combination of gold-plated contacts and halogen-free specifications further underlines its modern design, offering peace of mind for users who prioritise safety and technological advancement in their operational processes.

Large cable cross-section for reducing the voltage drop and transferring higher currents
Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
Vibration and shock resistant thanks to coupling ring with locking me

Brand	ifm
Series	EVC
Cross Sectional Area	1 mm²
Number of Cores	4
Sheath Material	Polyurethane PUR
Length	1m
Sheath Colour	Black
Connector 1 Orientation	Right Angle
Connector 1 Number of Contacts	4
Connector 1 Gender	Male
Connector 1	M12
Connector 2 Gender	Female
Connector 2 Number of Contacts	5
Connector 2	M12
Connector 2 Orientation	Straight
