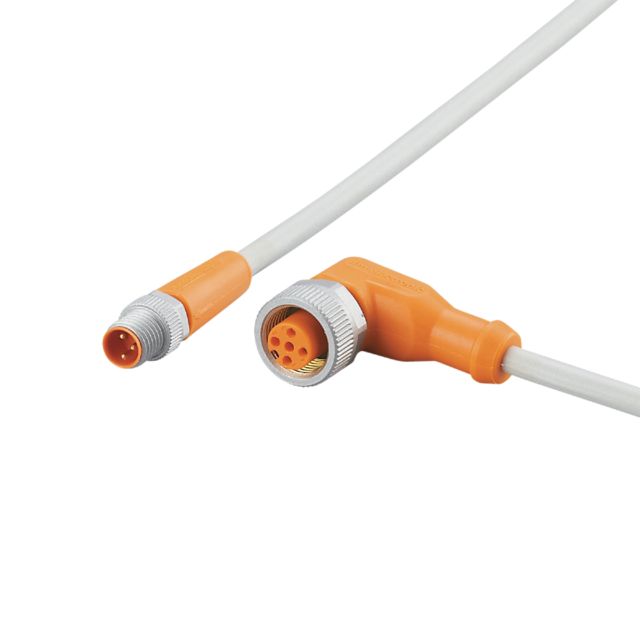

ifm EVW091, Straight Male 1 way M8 to Right Angle Female 1 way M12 Sensor Actuator Cable, 600mm

Part Number : EVW091

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic Connection Cable offers innovative solutions for welding applications, designed to enhance performance and reliability. Engineered with a focus on user safety and functionality, the product features silicone free and halogen free materials. Its robust construction, including gold plated contacts, ensures superior electrical conductance. The cable's flexibility and drag chain suitability are tailored for dynamic applications, providing outstanding durability over time. The durable TPU housing is complemented by robust brass components, providing exceptional protection and longevity. With a thoughtfully crafted design, this product represents a reliable choice for professionals seeking efficiency in their operations.

Weld-slag resistant PUR cable with drag chain suitability
Nut with special weld-slag resistant coating
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVW
Number of Cores	3
Cross Sectional Area	0.25 mm²
Sheath Colour	Grey
Length	600mm
Sheath Material	Polyurethane PUR
Connector 1 Gender	Male
Connector 1 Number of Contacts	1
Connector 1	M8
Connector 1 Orientation	Straight
Connector 2	M12
Connector 2 Number of Contacts	1
Connector 2 Orientation	Right Angle
Connector 2 Gender	Female
