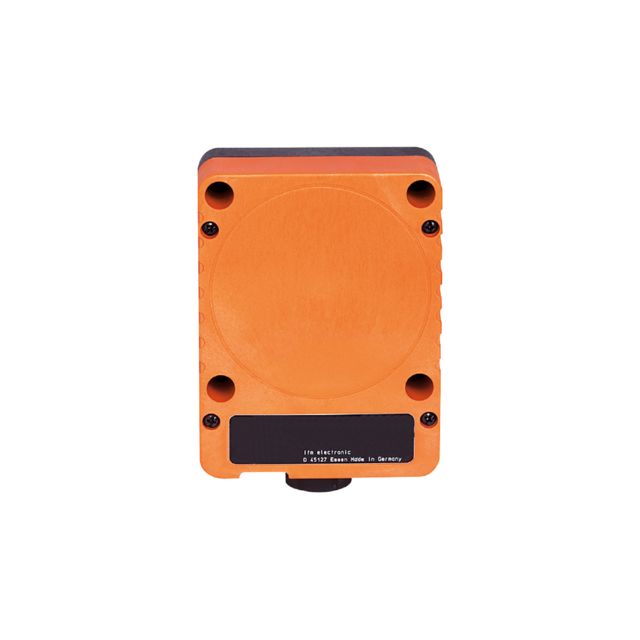

ifm ID5023, Inductive Rectangular Proximity Sensor, 60 mm Detection, NPN NO/NC, 10 → 36 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm ID5023, Inductive Rectangular Proximity Sensor, 60 mm Detection, NPN NO/NC, 10 → 36 V dc

Name: ifm ID5023, Inductive Rectangular Proximity Sensor, 60 mm Detection, NPN NO/NC, 10 → 36 V dc
Brand: ifm
SKU: ID5023
Availability: OutOfStock

Part Number : ID5023

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is designed to meet the demanding requirements of industrial applications with accuracy and reliability. This innovative device boasts a sensing range that can be adjusted to accommodate various operational needs, ensuring optimal performance in diverse environments. The 10 to 36 V operating voltage allows for flexibility in various installations, while its durable construction guarantees longevity, even under challenging conditions. With a robust IP65 protection rating, this sensor withstands dust and moisture, making it ideal for factory settings. Furthermore, its intuitive LED display provides real-time status updates, enhancing the user experience and simplifying monitoring tasks.

Very long sensing range
Large active sensor face
Easy setting of the sensing range via potentiometer
Output function normally open or normally closed programmable
Robust housing for use in harsh industrial environments

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	60 mm
Output Function	NO/NC
Digital Switching Output Type	NPN
Connection Type	Screw Terminal
Supply Voltage	10 → 36 V dc
IP Rating	IP65
Length	105mm
Mounting Type	Non-Flush
Series	ID5
Switching Current	250 mA
Shielding	Unshielded
Switching Frequency	4 Hz
