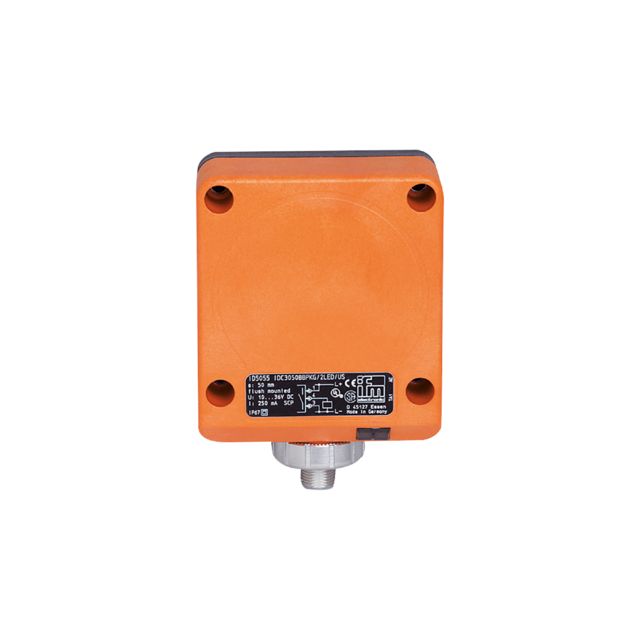

ifm ID5058, Inductive Rectangular Proximity Sensor, 50 mm Detection, PNP NO+NC, 10 → 36 V dc

Name: ifm ID5058, Inductive Rectangular Proximity Sensor, 50 mm Detection, PNP NO+NC, 10 → 36 V dc
Brand: ifm
SKU: ID5058
Availability: OutOfStock

Part Number : ID5058

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is a sophisticated solution designed for precision detection in various industrial applications. Thanks to its robust design, it provides reliable performance even in the most challenging environments. The rectangular housing ensures easy installation on a DIN rail, maximising flexibility while minimising necessary space. With an operating voltage range of 10 to 36 DC, it meets diverse operational requirements. The sensor is specifically engineered to accurately detect objects within a sensing range of up to 50 mm, making it an excellent choice for applications like automation and control. Additionally, its IP67 protection rating guarantees resistance to dust and water, ensuring durability and reliability. Built for longevity, this sensor combines advanced features and exceptional engineering, making it a vital component for modern production lines.

Very long sensing range
Large active sensor face
LED display to check switching status and operation
Robust housing for use in harsh industrial environments
Complementary output function NO/NC

Brand	ifm
Sensor Technology	Inductive
Detection Range	50 mm
Body Style	Rectangular
Digital Switching Output Type	PNP
Output Function	NO+NC
Connection Type	M12
Supply Voltage	10 → 36 V dc
Length	92mm
IP Rating	IP67
Mounting Type	Flush
Switching Frequency	70 Hz
Series	ID5
Switching Current	250 mA
Shielding	Shielded
