ifm IE5193, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP/NPN NO, 10 → 36 V dc

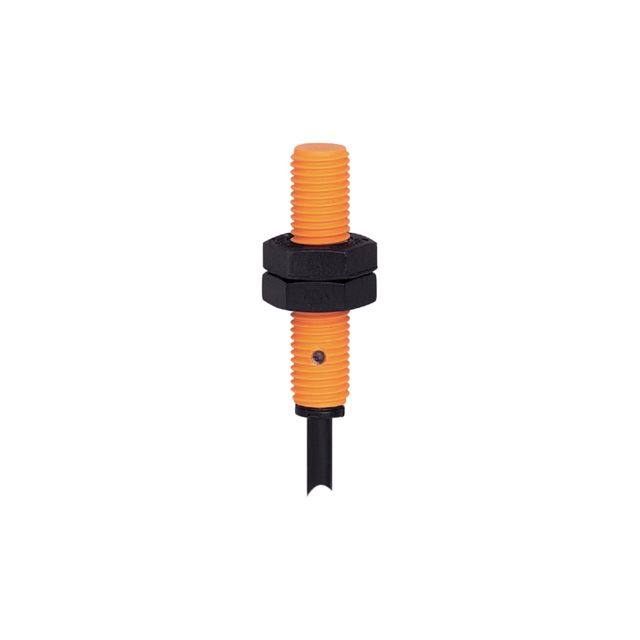

Name: ifm IE5193, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP/NPN NO, 10 → 36 V dc
Brand: ifm
SKU: IE5193
Availability: OutOfStock

Part Number : IE5193

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor is designed for precision and reliability in a multitude of industrial applications. Offering a remarkable sensing range, it ensures optimal performance even in the most demanding environments. The threaded type housing allows for easy installation, while its robust construction is built to withstand a variety of operating conditions. With a compact design featuring a length of 35 mm, this sensor is ideal for tight spaces. It operates effectively within a voltage range of 10 to 30 V DC, ensuring compatibility with a wide array of systems. The inclusion of reverse polarity protection enhances its durability, while various approvals ensure adherence to stringent industry standards.

Particularly short housing
For use where space is restricted
Space-saving connection technology
Two-wire technology
Very high switching frequency

Brand	ifm
Thread Size	M8
Sensor Technology	Inductive
Detection Range	2 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP/NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 36 V dc
Length	35mm
IP Rating	IP67
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	100 mA
Switching Frequency	2 kHz
Series	IE5
