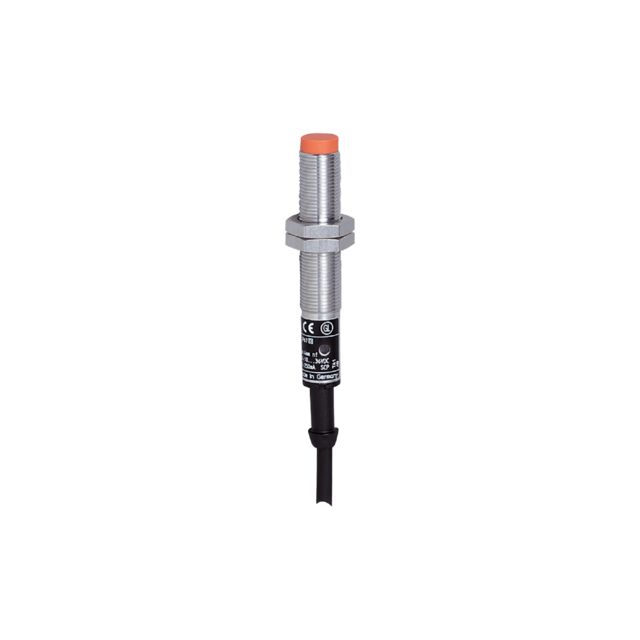

ifm IF5394, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 10 → 36 V dc

Name: ifm IF5394, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NO, 10 → 36 V dc
Brand: ifm
SKU: IF5394
Availability: OutOfStock

Part Number : IF5394

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor is designed for precision in industrial applications, particularly within factory automation. Its robust construction of stainless steel and PBT ensures longevity, while a sensing range of 4 mm allows it to excel in detecting metal objects reliably. The sensor operates efficiently within a voltage range of 10 to 36 VDC, making it versatile for various setups. With features such as short-circuit protection and a compact housing designed for non-flush mounting, this sensor not only meets industry standards for EMC compliance but also provides exceptional performance in harsh environments, boasting an impressive operational temperature range of -25 to 80 degrees Celsius. Enhanced by a clear yellow LED display for easy monitoring, this sensor combines durability with advanced functionality, making it an ideal choice for reliability and efficiency in automation applications.

Wide operating temperature range
Robust stainless steel housing for use in harsh industrial environments
Food-grade housing materials
Resistant to high-pressure cleaning with aggressive cleaning agents
With long PVC cable

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Output Function	NO
Digital Switching Output Type	PNP
Cable Length	6m
Connection Type	Pre-Cabled
Supply Voltage	10 → 36 V dc
IP Rating	IP67
Length	71mm
Mounting Type	Non-Flush
Switching Current	250 mA
Switching Frequency	400 Hz
Series	IF5
Shielding	Unshielded
