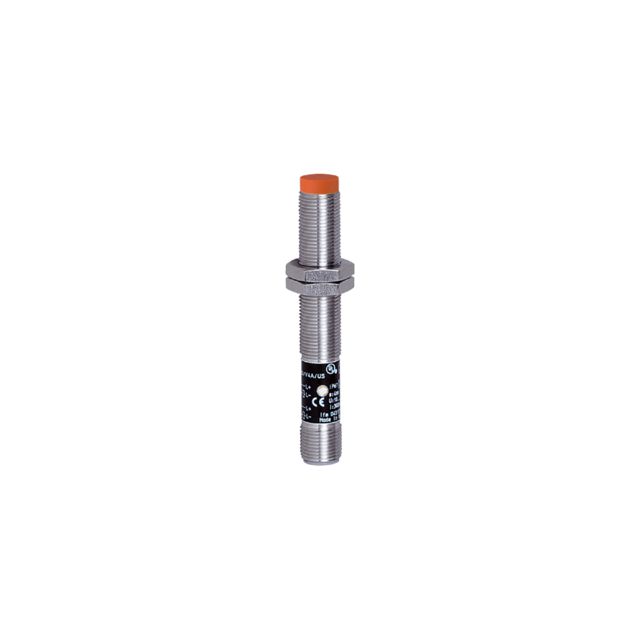

ifm IF5647, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP/NPN NO/NC, 10 → 55 V dc

Name: ifm IF5647, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP/NPN NO/NC, 10 → 55 V dc
Brand: ifm
SKU: IF5647
Availability: OutOfStock

Part Number : IF5647

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is a robust solution for various applications requiring reliable object detection. Designed by experienced engineers, it features a PNP/NPN output configuration with selectable functions, enabling compatibility with diverse electrical systems. The sensing range of 4mm ensures accurate measurements, while its sturdy threaded housing facilitates easy installation in operational settings. Built to withstand harsh environments, this product operates efficiently within an ambient temperature range of -25 to 80°C and boasts an IP67 protection class. Enhanced by short-circuit and overload protection, it offers peace of mind in industrial applications, ensuring that performance remains consistent even under stress. This product is manufactured with high-quality materials, guaranteeing durability and long-lasting reliability that meets modern demands.

Output function normally open or normally closed programmable
Two-wire technology
Very high switching frequency
Wide operating temperature range
Robust metal housing for use in harsh industrial environments

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Output Function	NO/NC
Digital Switching Output Type	PNP/NPN
Connection Type	M12
Supply Voltage	10 → 55 V dc
IP Rating	IP67
Length	83mm
Mounting Type	Non-Flush
Switching Frequency	1.5 kHz
Shielding	Unshielded
Switching Current	300 mA
Series	IF5
