ifm IG0363, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, 2-Wire NC, 20 → 250 V ac/dc, 20

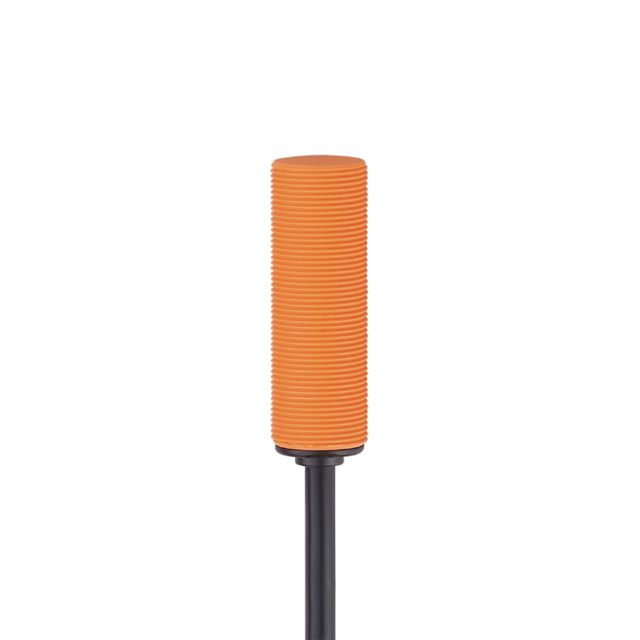

Name: ifm IG0363, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, 2-Wire NC, 20 → 250 V ac/dc, 20
Brand: ifm
SKU: IG0363
Availability: OutOfStock

Part Number : IG0363

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is designed to deliver reliable performance in a variety of industrial applications. Engineered for precision, this model provides accurate sensing up to a range of 8 mm, making it ideal for contactless detection of metallic objects. With its robust construction and IP67 protection rating, it withstands harsh environments, ensuring durability and longevity. Its compact threaded housing simplifies installation while also providing flexibility for different mounting scenarios. Designed with a keen focus on versatility, it features multiple outputs suitable for both AC and DC applications, enhancing its operational scope in diverse systems. The low energy consumption and efficient performance make it an environmentally friendly option for modern manufacturing needs.

With combined AC/DC output stage
Two-wire technology
Large operating voltage range
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Digital Switching Output Type	2-Wire
Output Function	NC
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	20 → 250 V ac/dc, 20 → 250 V ac/dc
IP Rating	IP67
Length	54mm
Mounting Type	Non-Flush
Switching Frequency	50 Hz
Shielding	Unshielded
Switching Current	100 mA
Series	IG0
