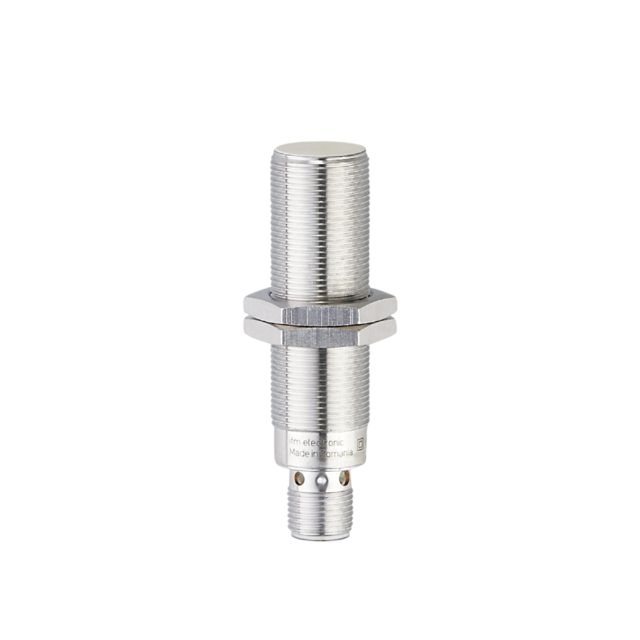

ifm IGC228, Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, PNP NO, 10 → 36 V dc

Name: ifm IGC228, Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, PNP NO, 10 → 36 V dc
Brand: ifm
SKU: IGC228
Availability: OutOfStock

Part Number : IGC228

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is engineered for precision and reliability in industrial applications. This robust sensor stands out with its threaded design, ensuring secure mounting in demanding environments. With extensive protection measures, including short-circuit and overload protection, this sensor is built to last in various atmospheric conditions, featuring high ratings for both temperature and ingress protection. Its advanced electrical design utilises a PNP output function, making it a versatile choice for automation processes, ideal for those seeking efficiency and accuracy in their operations.

Permanently legible laser type label
For use in machine tools and metalworking
Clearly visible indication of the switching status
High protection rating for the requirements of harsh industrial environments
Resistant to oils and coolants

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Detection Range	5 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 36 V dc
Length	70mm
IP Rating	IP68
Mounting Type	Flush
Shielding	Shielded
Switching Current	200 mA
Switching Frequency	400 Hz
Series	IGC
