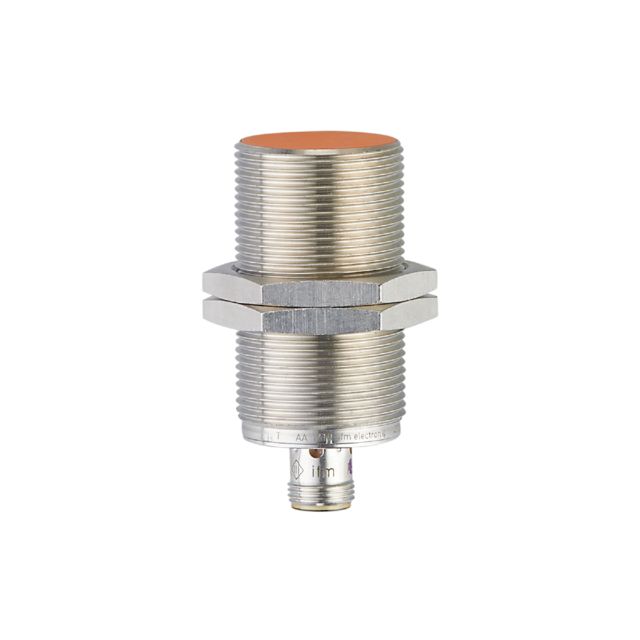

ifm II5983, Inductive Threaded Barrel Proximity Sensor, M30, 13 mm Detection, PNP/NPN NO/NC, 10 → 30 V dc
- Detailed Description
- Specifications
Flexible use thanks to large operating temperature range
Reliable transmission of the distance as linearized process value via IO-Link
Normally closed or normally open and PNP/NPN adjustable via IO-Link
| Brand | ifm |
| Thread Size | M30 |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 13 mm |
| Output Function | NO/NC |
| Digital Switching Output Type | PNP/NPN |
| Connection Type | M12 |
| Supply Voltage | 10 → 30 V dc |
| Length | 65mm |
| IP Rating | IP65, IP66, IP67, IP68, IP69K |
| Mounting Type | Flush |
| Shielding | Shielded |
| Switching Frequency | 100 Hz |
| Switching Current | 150 mA |
| Communication Protocol | IO-LINK |
| Series | II |
