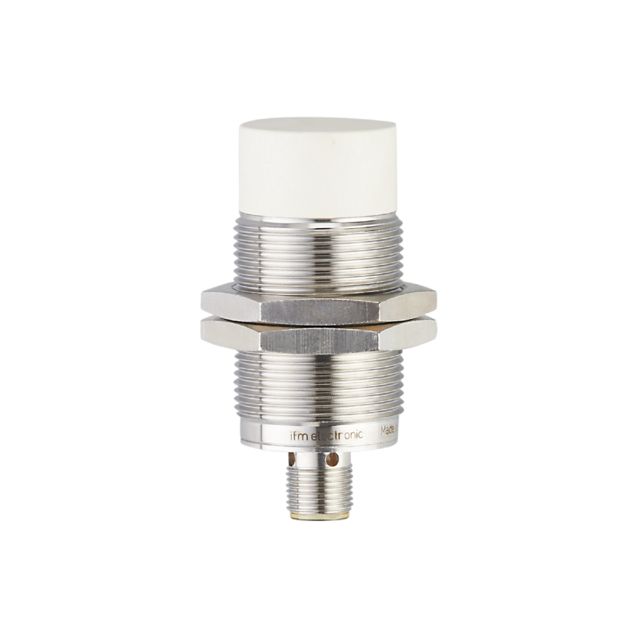

ifm IIM209, Inductive Threaded Barrel Proximity Sensor, M30, 22 mm Detection, PNP NO, 10 → 60 V dc

Name: ifm IIM209, Inductive Threaded Barrel Proximity Sensor, M30, 22 mm Detection, PNP NO, 10 → 60 V dc
Brand: ifm
SKU: IIM209
Availability: OutOfStock

Part Number : IIM209

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor is designed for optimal performance in mobile and challenging environments. The robust construction ensures reliability and precision, offering notable features such as gold-plated contacts and an enhanced sensing range. With its threaded design, the unit easily integrates into existing systems, providing users with a dependable solution for various applications. The sensor effectively operates under a broad temperature range and meets stringent protection standards, ensuring its durability and functionality in harsh conditions. Furthermore, the advanced technology behind this product enhances its sensitivity and accuracy, making it an essential component for industrial automation tasks.

E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority)
Wide operating temperature range
High ingress protection for the requirements of harsh environmental conditions
High EMC resistance according to automotive standards
Large operating voltage range

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	22 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 60 V dc
IP Rating	IP67, IP69K
Length	70mm
Mounting Type	Non-Flush
Series	IIM
Switching Frequency	100 Hz
Switching Current	200 mA
Shielding	Unshielded
