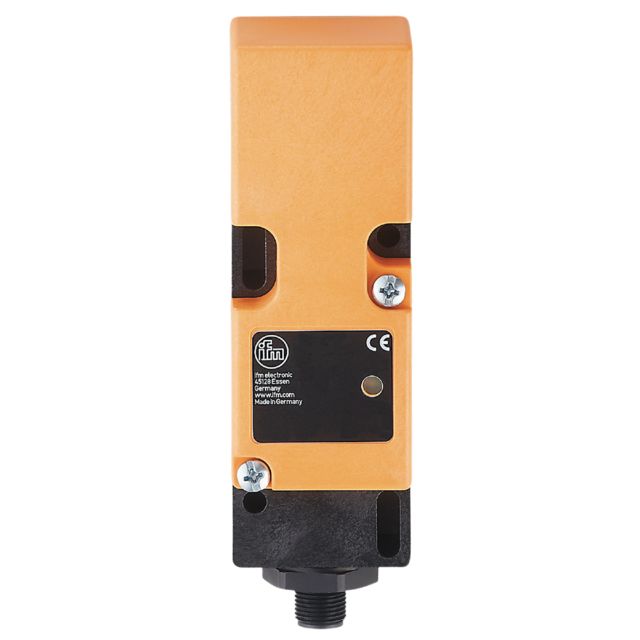

ifm IM5044, Inductive Rectangular Proximity Sensor, 20 mm Detection, PNP/NPN NO, 10 → 36 V dc

Name: ifm IM5044, Inductive Rectangular Proximity Sensor, 20 mm Detection, PNP/NPN NO, 10 → 36 V dc
Brand: ifm
SKU: IM5044
Availability: OutOfStock

Part Number : IM5044

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Sensor is expertly designed to deliver precise and reliable detection in various industrial applications. Engineered with a rectangular housing, it boasts an impressive sensing range, making it ideal for diverse setups. Built to withstand challenging conditions, this device offers high protection standards and durability against environmental factors. Its robust electrical design supports a flexible output function, allowing users to select between normally open and normally closed configurations. Featuring advanced diagnostic capabilities, this sensor ensures optimal performance and minimal downtime, making it a valuable asset in automation processes.

Long sensing range for use in conveying
Output function normally open or normally closed programmable
Robust housing for use in harsh industrial environments
Five positions of the sensing face selectable
Clearly visible indication of the switching status

Brand	ifm
Sensor Technology	Inductive
Detection Range	20 mm
Body Style	Rectangular
Digital Switching Output Type	PNP/NPN
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 36 V dc
Length	120mm
IP Rating	IP67
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	250 mA
Series	IM
Switching Frequency	300 Hz
