ifm IS5045, Inductive Rectangular Proximity Sensor, 2 mm Detection, PNP NO, 10 → 30 V dc

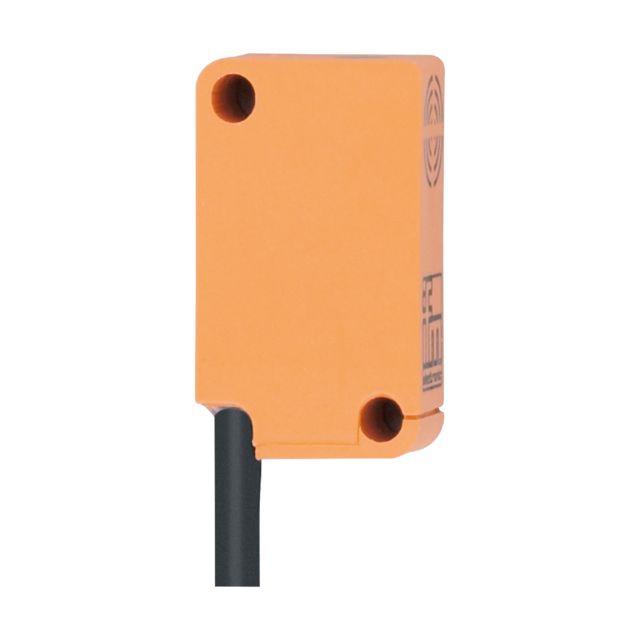

Name: ifm IS5045, Inductive Rectangular Proximity Sensor, 2 mm Detection, PNP NO, 10 → 30 V dc
Brand: ifm
SKU: IS5045
Availability: OutOfStock

Part Number : IS5045

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is engineered for precise sensing in demanding industrial environments. With a compact rectangular design and a sensing range of 2mm, it delivers reliable performance even under challenging conditions. The sensor features PNP electrical design, reverse polarity, and short-circuit protection, all while maintaining an IP67 rating for durability against dust and water. Its flush-mountable design offers flexibility in installation, making it a versatile choice for enhancing productivity in automated systems and machinery.

Particularly space-saving rectangular housing
For use where space is restricted
Very high switching frequency
Wide operating temperature range
Clearly visible indication of the switching status

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	2 mm
Output Function	NO
Digital Switching Output Type	PNP
Cable Length	6m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	27.8mm
Mounting Type	Flush
Switching Current	200 mA
Series	IS
Switching Frequency	800 Hz
Shielding	Shielded
