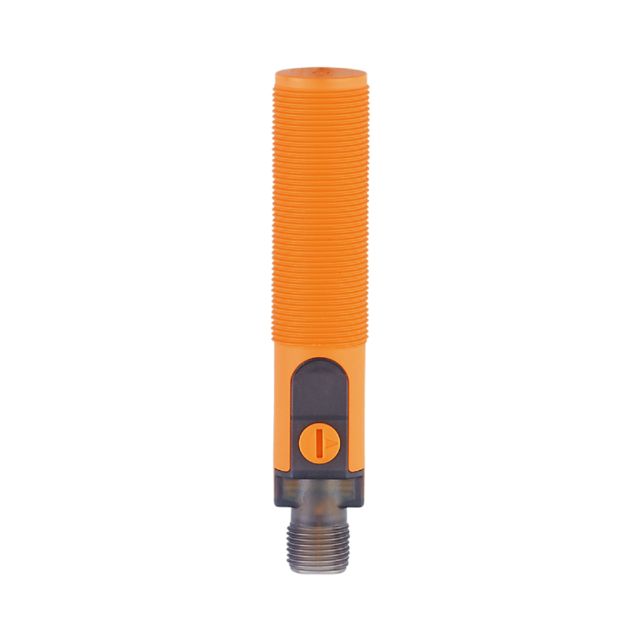

ifm KG5307, Capacitive Threaded Barrel Proximity Sensor, M18, 0.5 → 30 mm Detection, PNP NC, 10 → 30 V

Name: ifm KG5307, Capacitive Threaded Barrel Proximity Sensor, M18, 0.5 → 30 mm Detection, PNP NC, 10 → 30 V
Brand: ifm
SKU: KG5307
Availability: OutOfStock

Part Number : KG5307

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor delivers precise and reliable detection with a range of 0.5 to 30 mm, making it suitable for various industrial applications. Its robust design features IP65, IP67, and IP 69K ratings for superior protection against dust and water. Integrated IO-Link communication allows for seamless system integration and enhanced monitoring. Engineered for durability, this sensor ensures consistent performance even in challenging environments.

Easily adjustable sensing range
High protection rating for the requirements of harsh industrial environments
Use in high medium temperatures
For position detection or level monitoring
User-friendly communication and parameterisation via IO-Link

Brand	ifm
Thread Size	M18
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	0.5 → 30 mm
Digital Switching Output Type	PNP
Output Function	NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	92.5mm
IP Rating	IP65, IP67, IP69K
Mounting Type	Non-Flush
Switching Frequency	30 Hz
Switching Current	200 mA
Communication Protocol	IO-LINK
Series	KG
Shielding	Unshielded
