ifm KG6000, Capacitive Threaded Barrel Proximity Sensor, M18, 30 mm Detection, PNP NO/NC, 10 → 30 V dc

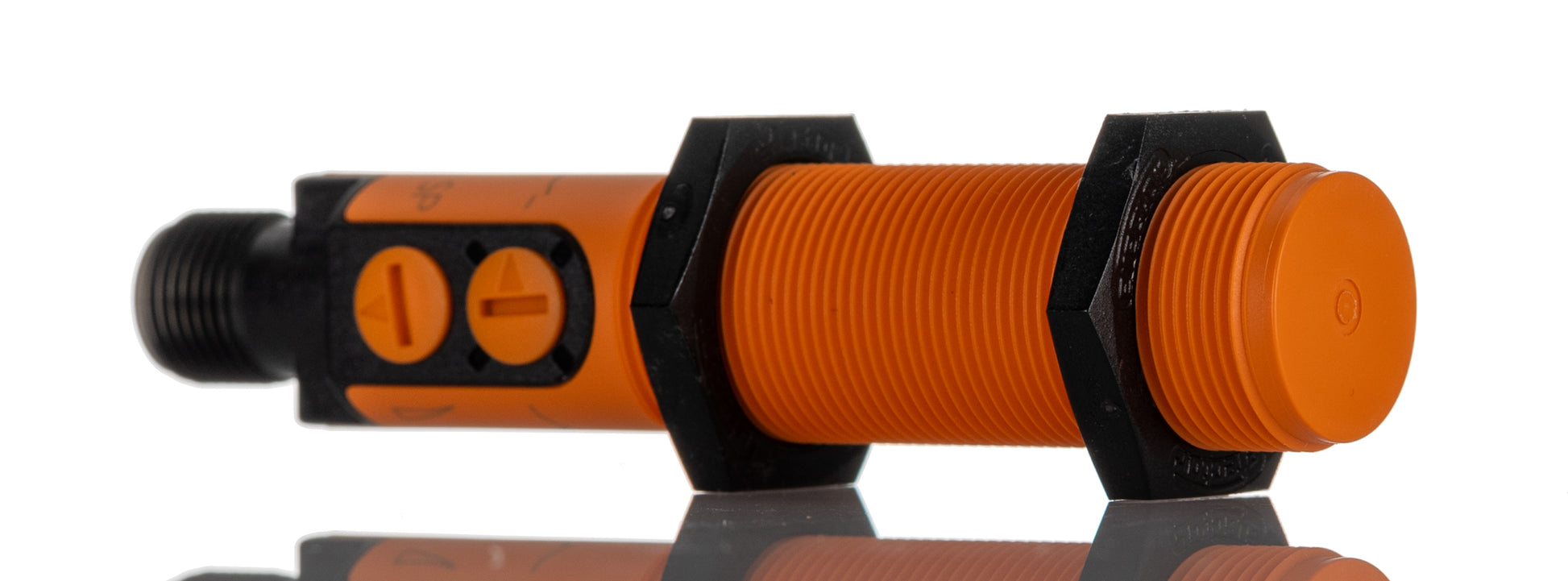

Name: ifm KG6000, Capacitive Threaded Barrel Proximity Sensor, M18, 30 mm Detection, PNP NO/NC, 10 → 30 V dc
Brand: ifm
SKU: KG6000
Availability: OutOfStock

Part Number : KG6000

Availability: Sold out

Detailed Description
Specifications
Downloads

The IFM Electronics Capacitive sensor has Easily adjustable sensing range With signal display for a perfect switch point,High protection rating for the requirements of harsh industrial environments, Use in high medium temperatures For position detection or level monitoring

Sensing range is 0.5 to 30mm
Operating voltage range is 10V to 30V DC

Brand	ifm
Thread Size	M18
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	30 mm
Output Function	NO/NC
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	92.5mm
IP Rating	IP65, IP67, IP69K
Mounting Type	Non-Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Unshielded
Communication Protocol	IO-LINK
Switching Current	200 mA
Maximum Operating Temperature	+80°C

ifm KG6000, Capacitive Threaded Barrel Proximity Sensor, M18, 30 mm Detection, PNP NO/NC, 10 → 30 V dc
