ifm KG6015, Capacitive Threaded Barrel Proximity Sensor, M18, 0.5 → 30 mm Detection, PNP NO/NC, 10 →

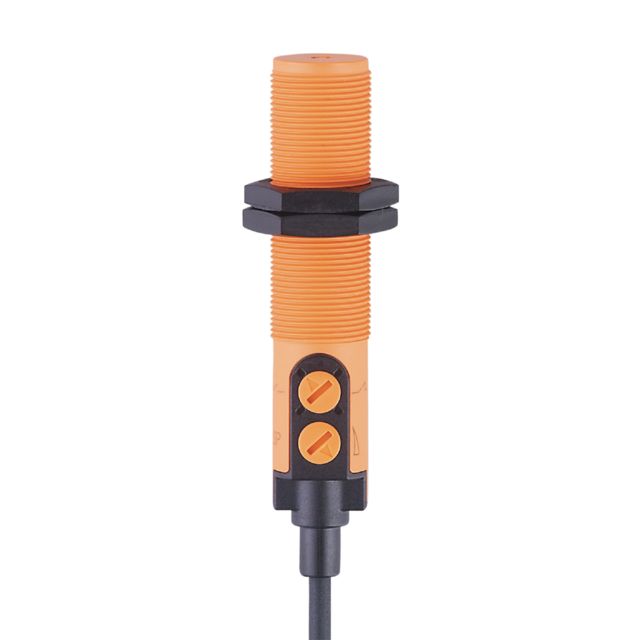

Name: ifm KG6015, Capacitive Threaded Barrel Proximity Sensor, M18, 0.5 → 30 mm Detection, PNP NO/NC, 10 →
Brand: ifm
SKU: KG6015
Availability: OutOfStock

Part Number : KG6015

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor offers precision and reliability across various sensing applications. Its versatile design supports operation in challenging environments with a wide temperature range. Featuring IO-Link technology for advanced communication, it includes dual LED indicators for real-time status feedback. The sensor's robust construction, with overload and reverse polarity protection, ensures dependable performance.

Easily adjustable sensing range
With signal display for a perfect switch point
High protection rating for the requirements of harsh industrial environments
Use in high medium temperatures
For position detection or level monitoring
User-friendly communicat

Brand	ifm
Thread Size	M18
Sensor Technology	Capacitive
Detection Range	0.5 → 30 mm
Body Style	Threaded Barrel
Output Function	NO/NC
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP67, IP69K
Length	92.5mm
Mounting Type	Non-Flush
Shielding	Unshielded
Communication Protocol	IO-LINK
Switching Frequency	30 Hz
Switching Current	200 mA
Series	KG
