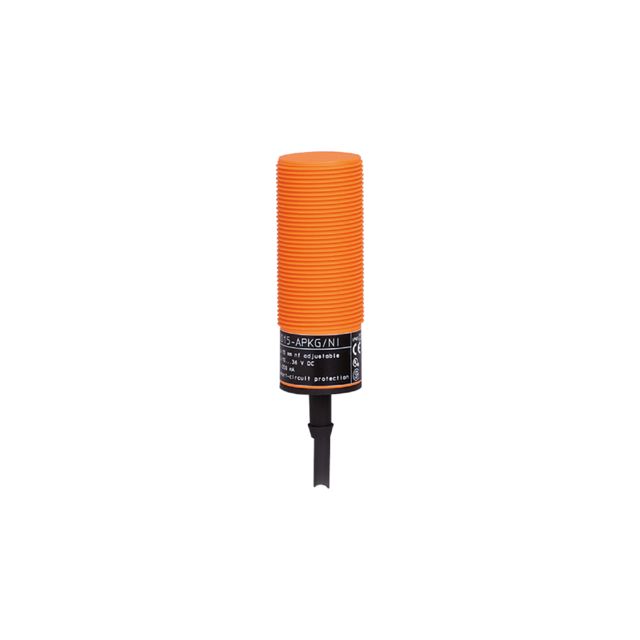

ifm KI5006 | Capacitive Proximity Sensor | 15 mm, 10 → 36 V dc

Name: ifm KI5006 | Capacitive Proximity Sensor | 15 mm, 10 → 36 V dc
Brand: ifm
SKU: KI5006
Availability: OutOfStock

Part Number : KI5006

The ifm KI5006 is a capacitive proximity sensor with detection range 15 mm, supply voltage 10 → 36 V dc and IP65 protection.

Thread Size: M30
Sensor Technology: Capacitive
Detection Range: 15 mm
Body Style: Threaded Barrel
Output Function: NO
Digital Switching Output Type: PNP
Cable Length: 6m
Connection Type: Pre-Cabled

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor is engineered for reliability and accuracy across diverse applications. With a PNP output function and a sensing range of up to 15 mm, it ensures precise detection of solid and liquid materials. Its robust threaded housing and high protection class provide durability in challenging environments. Capable of operating between -25 to 70°C and resistant to electrical interference, this sensor integrates seamlessly into various systems, offering dependable performance and versatility.

High noise immunity
Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status
With PVC cable
For position detection or level monitoring

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Detection Range	15 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Cable Length	6m
Connection Type	Pre-Cabled
Supply Voltage	10 → 36 V dc
IP Rating	IP65
Length	81mm
Mounting Type	Non-Flush
Series	KI
Switching Frequency	40 Hz
Shielding	Unshielded
Switching Current	250 mA
