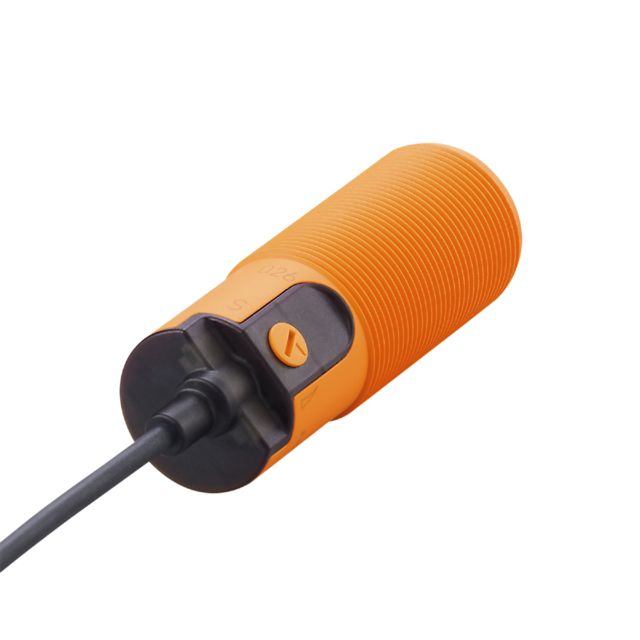

ifm KI5304, Capacitive Threaded Barrel Proximity Sensor, M30, 0.5 → 40 mm Detection, PNP NC, 10 → 30 V

Name: ifm KI5304, Capacitive Threaded Barrel Proximity Sensor, M30, 0.5 → 40 mm Detection, PNP NC, 10 → 30 V
Brand: ifm
SKU: KI5304
Availability: OutOfStock

Part Number : KI5304

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor delivers precise and reliable performance with a broad sensing range. Its robust design and high protection ratings (IP65, IP67, IP 69K) ensure durability in harsh environments. The sensor features IO-Link communication for straightforward parameter adjustments and seamless integration. Ideal for position detection and level monitoring, it combines resilience with advanced functionality.

Easily adjustable sensing range
High protection rating for the requirements of harsh industrial environments
Use in high medium temperatures
For position detection or level monitoring
Easy parameter setting via IO-Link

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Detection Range	0.5 → 40 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NC
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	92mm
IP Rating	IP65, IP67, IP69K
Mounting Type	Quasi-Flush
Series	KI
Shielding	Shielded
Communication Protocol	IO-LINK
Switching Current	200 mA
Switching Frequency	30 Hz
