ifm KI530A, Capacitive Threaded Barrel Proximity Sensor, M30, 3 → 26 mm Detection, PNP NO+NC, 10 → 30

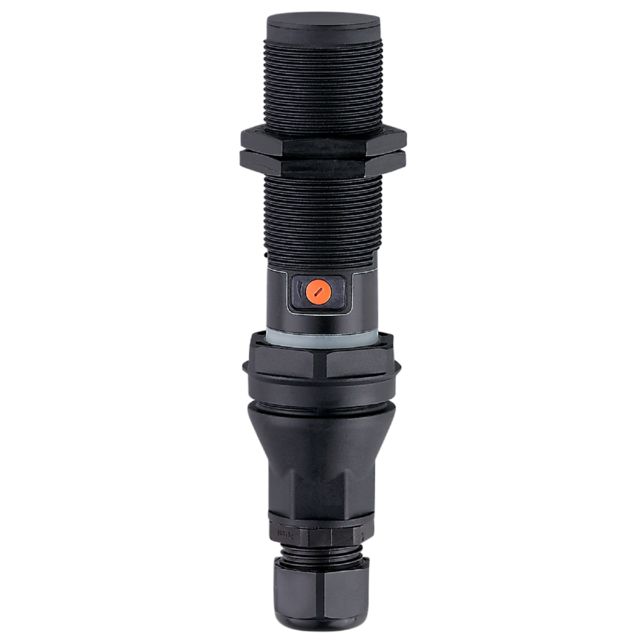

Name: ifm KI530A, Capacitive Threaded Barrel Proximity Sensor, M30, 3 → 26 mm Detection, PNP NO+NC, 10 → 30
Brand: ifm
SKU: KI530A
Availability: OutOfStock

Part Number : KI530A

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor provides precise detection for various applications with an adjustable sensing range. Its robust, threaded design and IP65/IP67 protection ensure reliable performance in tough environments. Integrated IO-Link communication facilitates efficient data exchange and easy parameter adjustments. Ideal for enhancing productivity, this sensor delivers consistent operation and reliability.

For applications in hazardous areas
Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status
Direct connection to plant control without switching amplifier
Complementary output function NO/NC
User-friendly com

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Detection Range	3 → 26 mm
Body Style	Threaded Barrel
Output Function	NO+NC
Digital Switching Output Type	PNP
Connection Type	Screw Terminal
Supply Voltage	10 → 30 V dc
Length	150mm
IP Rating	IP65, IP67
Mounting Type	Non-Flush
Series	KI
Shielding	Unshielded
Communication Protocol	IO-LINK
Switching Current	200 mA
Switching Frequency	200 Hz
