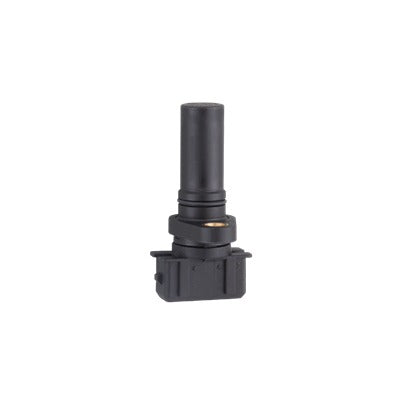

ifm MX5004, MX Series Magnetic Magnetic Speed Sensor, NPN Open Collector Signal, Round Type, 15mm Shaft

Name: ifm MX5004, MX Series Magnetic Magnetic Speed Sensor, NPN Open Collector Signal, Round Type, 15mm Shaft
Brand: ifm
SKU: MX5004
Availability: OutOfStock

Part Number : MX5004

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic speed sensor operates at a voltage range of 7 to 30 V DC with a current consumption below 30 mA. It has a protection class III rating and does not include reverse polarity protection. The output is designed as NPN, with a permanent current rating of 50 mA for the switching output. The sensor supports a switching frequency from 1 Hz up to 15,000 Hz.

IP69K rated
NPN
