ifm NF5002, Inductive Threaded Barrel Proximity Sensor, M12, 2 mm Detection, NAMUR NC, 7.5 → 30 V dc

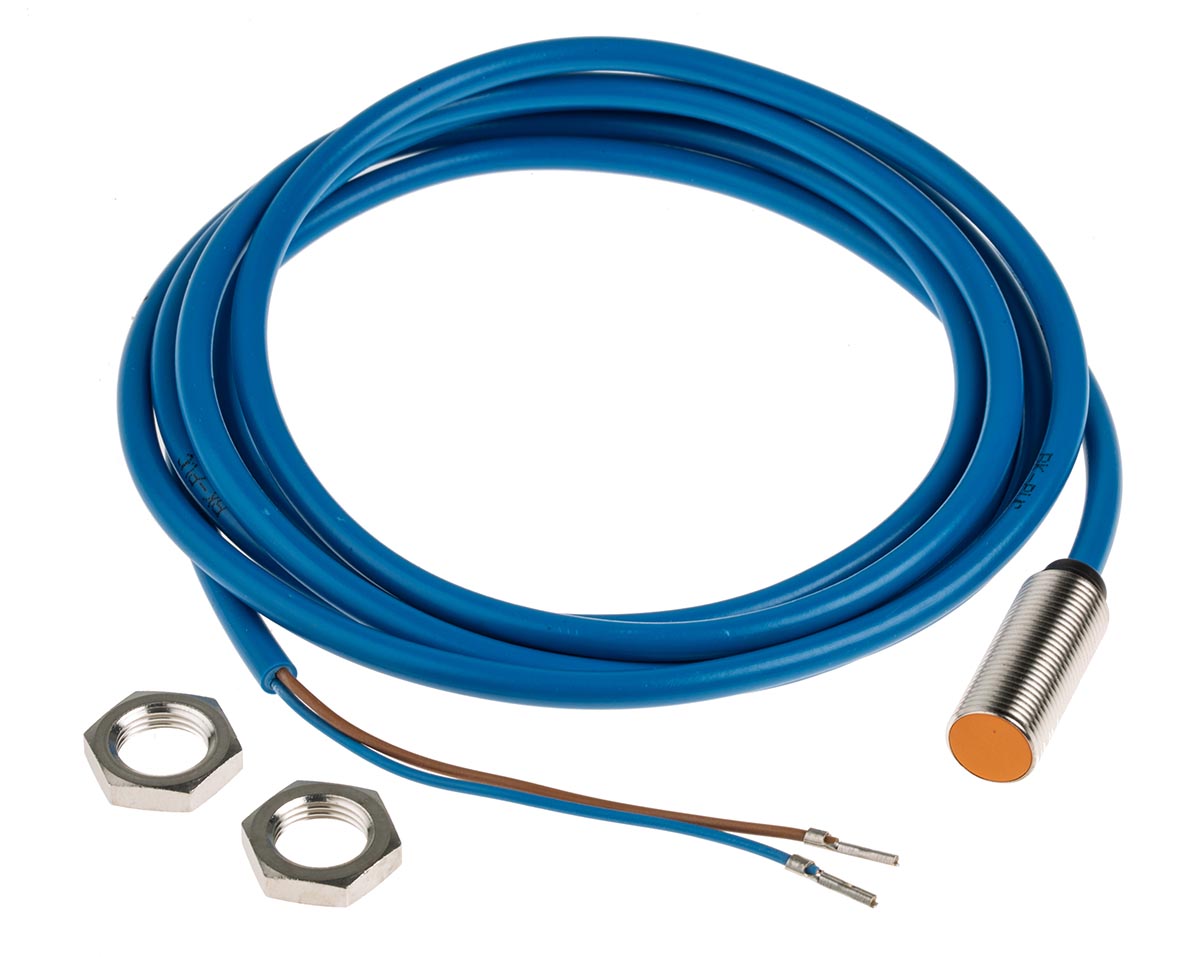

Name: ifm NF5002, Inductive Threaded Barrel Proximity Sensor, M12, 2 mm Detection, NAMUR NC, 7.5 → 30 V dc
Brand: ifm
SKU: NF5002
Availability: OutOfStock

Part Number : NF5002

Availability: Sold out

Detailed Description
Specifications
Downloads

Inductive NAMUR sensors for hazardous gas area

3 versions with switching distances of 1 → 5 mm
Embedded installation
2 switching amplifiers available
- N0033A: 230 Vac, 2-channel, relay outputs
- N0534A: 24 Vdc, 2-channel, PNP transistor outputs

Application

Developed for the high demands of the 2G device category (zone 1)

Group and Category

PTB 01 ATEX 2191

Certificate No.

II 2G EEx ia IIC T6

Approvals

EN 60947-5-2 (EMC)

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Detection Range	2 mm
Body Style	Threaded Barrel
Digital Switching Output Type	NAMUR
Output Function	NC
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	7.5 → 30 V dc
Length	30mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Brass Nickel Plated
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Hazardous Area Certification	ATEX
Maximum Operating Temperature	+70°C
Shielding	Shielded
Maximum Switching Frequency	1.2kHz
Switching Current	30 mA
