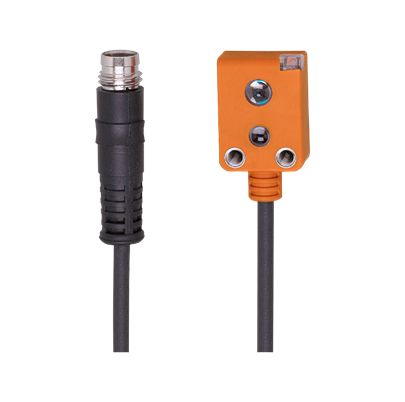

ifm O7H208 | Photoelectric Sensor | 5 → 50 mm, NPN
The ifm O7H208 is a photoelectric sensor with detection range 5 → 50 mm, output type NPN and electrical connection M8 Connector.
- Sensor Style: Rectangular
- Detection Type: Diffuse Reflection
- Detection Range: 5 → 50 mm
- Output Type: NPN
- Switching Mode: Light Switching
- Electrical Connection: M8 Connector
- Detailed Description
- Specifications
- Downloads
Compact rectangular housing facilitates easy installation in constrained spaces
Red light type ensures effective operation in a variety of light conditions
Operating voltage range of 10 to 30 DC caters to diverse power supply needs
Short circuit protection safeguards the sensor from electrical damage
High switching frequency of 750 Hz allows for swift detection of moving objects
NPN electrical design is standard for integration with common control systems
IP 65 protection rating ensures operational reliability in harsh environments
Light spot dimensions are optimised for precise detection at maximum range
| Brand | ifm |
| Detection Type | Diffuse Reflection |
| Detection Range | 5 → 50 mm (0.197 to 1.97 in) |
| Sensor Style | Rectangular |
| Output Type | NPN |
| Electrical Connection | M8 Connector |
| Switching Mode | Light Switching |
