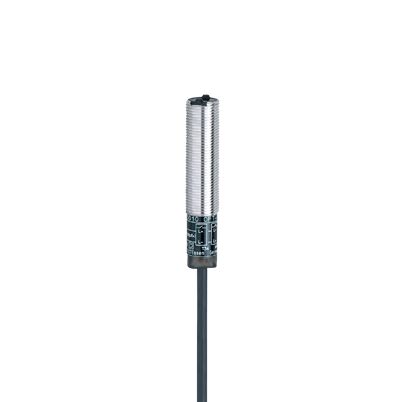

ifm OF5019 | Photoelectric Sensor | 4 m, PNP
The ifm OF5019 is a photoelectric sensor with detection range 4 m, output type PNP and electrical connection Cable.
- Sensor Style: Barrel
- Detection Type: Through Beam
- Detection Range: 4 m
- Output Type: PNP
- Electrical Connection: Cable
- Switching Mode: Light / Dark switching
- Detailed Description
- Specifications
- Downloads
Utilises infrared light with an 880 nm wavelength for effective detection
Features a lightweight design at just 73 grams for easy installation
Complies with EMC EN 60947 5 2 and EN 55011 class B for safety standards
Includes a 2 metre PUR cable with colour coded cores for straightforward connectivity
Offers programmable output functions for tailored application requirements
Constructed with brass nickel plated housing and PMMA lens for enhanced durability
Equipped with LED indicators for real time status monitoring
Designed with a switching frequency of 320 Hz for rapid response
| Brand | ifm |
| Detection Type | Through Beam |
| Detection Range | 4 m (13.1 ft) |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | Cable |
| Switching Mode | Light / Dark switching |
