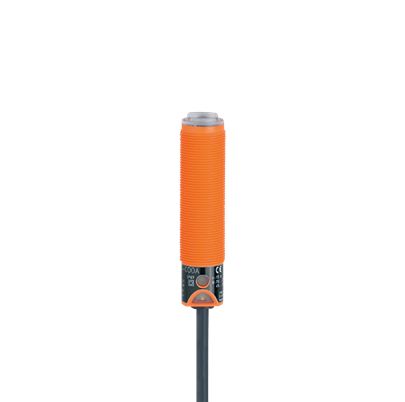

ifm OG0043, Retro Reflective Photoelectric Sensor, Barrel Sensor, 3 m Detection Range

Name: ifm OG0043, Retro Reflective Photoelectric Sensor, Barrel Sensor, 3 m Detection Range
Brand: ifm
SKU: OG0043
Availability: OutOfStock

Part Number : OG0043

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic Retro-reflective sensor is a highly efficient device designed for precise detection in a variety of applications. This sensor utilises red light technology and features a threaded housing, ensuring robust installation and reliability. With an operational voltage range of 20 to 250 AC/DC, it caters to a wide spectrum of industrial environments. The sensor’s polarisation filter enhances its effectiveness, providing consistent performance by reducing the influence of ambient light. Additionally, it features adjustable range capabilities for tailored performance, making it an ideal choice for diverse industrial needs.

Robust housing design rated IP 67 ensuring protection against dust and water ingress
Polarisation filter available for improved detection reliability in varying light conditions
Detection range of up to 3 metres with an adjustable capability for specific requirements
Light spot diameter of 262 mm at maximum range offering enhanced visibility
Integrated LED display for clear switching status feedback

Brand	ifm
Sensor Style	Barrel
Detection Type	Retro Reflective
Detection Range	3 m
Electrical Connection	Cable
Switching Mode	Light Switching
