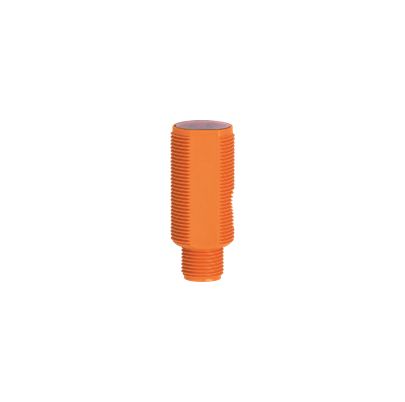

ifm OGT102 | Photoelectric Sensor | 10 → 400 mm, NPN
The ifm OGT102 is a photoelectric sensor with detection range 10 → 400 mm, output type NPN and electrical connection M12 Connector.
- Sensor Style: Barrel
- Detection Type: Diffuse Reflection
- Detection Range: 10 → 400 mm
- Output Type: NPN
- Switching Mode: Light Switching
- Electrical Connection: M12 Connector
- Detailed Description
- Specifications
- Downloads
Supports a versatile operating voltage range of 10 to 30 DC
Incorporates an NPN electrical output for effective signal management
Features reverse polarity protection to safeguard against electrical mishaps
Offers a maximum switching frequency of 1000 Hz for efficient operation
Equipped with short circuit and overload protection to ensure safe usage
Humidity proof design with IP 65 rating providing protection against dust and water
Includes a clear LED display for easy monitoring of switching status
Built with an adjustable sensing range for tailored applications
| Brand | ifm |
| Detection Type | Diffuse Reflection |
| Detection Range | 10 → 400 mm (0.394 to 15.7 in) |
| Sensor Style | Barrel |
| Output Type | NPN |
| Electrical Connection | M12 Connector |
| Switching Mode | Light Switching |
