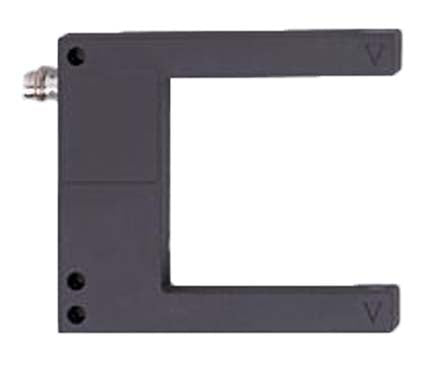

ifm OPU203, Through Beam Photoelectric Sensor, Fork Sensor, >0.5 mm Detection Range IO-LINK

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm OPU203, Through Beam Photoelectric Sensor, Fork Sensor, >0.5 mm Detection Range IO-LINK

Name: ifm OPU203, Through Beam Photoelectric Sensor, Fork Sensor, >0.5 mm Detection Range IO-LINK
Brand: ifm
SKU: OPU203
Availability: OutOfStock

Part Number : OPU203

Availability: Sold out

Detailed Description
Specifications
Downloads

ifm OPU Optical Fork Sensors

ifm OPU series optical fork sensors with a robust metal housing offer quick setup with no need to align a transmitter and receiver. These optical sensors are used in particular for part monitoring in feeder and handling systems. Further application examples are belt edge or double feed monitoring with the exact sensitivity setting via potentiometer being helpful. The fine light beam with its constant small diameter is also ideal for monitoring shaft imbalance.

Features and Benefits

Metal housing reduces distortion

Quick setup: no need to align transmitter and receiver

Easy sensitivity setting via potentiometer

Light-on/dark-on mode via rotary switch

Across the whole fork width: fine and precise light beam

Brand	ifm
Sensor Style	Fork
Detection Type	Through Beam
Detection Range	>0.5 mm
Output Type	PNP
Electrical Connection	M8 3 Pin Connector
Maximum DC Voltage	35V
Communication Protocol	IO-LINK
Terminal Type	Quick Disconnect
Light Source	LED
IP Rating	IP67
Maximum Current	30 mA
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
Housing Material	Die Cast Zinc
Standards Met	CE, cULus
