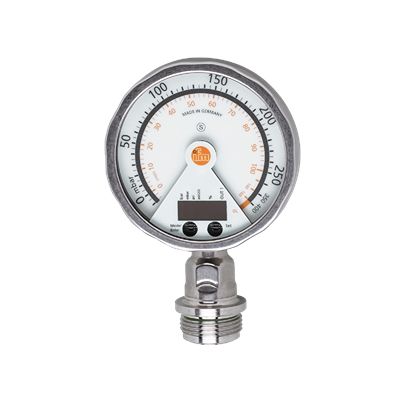

ifm PG2798 | Pressure Sensor | -0.0124bar to 0.25bar, -0.0124bar to 0.25bar
The ifm PG2798 is a pressure sensor with pressure range -0.0124bar to 0.25bar, pressure range -0.0124bar to 0.25bar and output type 4 -20mA, PNP/NPN. ifm lists analog display, pressure switch and transmitter in one unit, excellent readability also over a long distance and rotatable display with LED bar graph for switch point indication among its features.
- Pressure Reading Type: Relative
- Pressure range: -0.0124bar to 0.25bar
- Accuracy: ± 0.5
- Output Type: 4 -20mA, PNP/NPN
- Detailed Description
- Specifications
- Features
- Downloads
Wide measuring range from -0.0124 to 0.25 bar, accommodating various pressure requirements
Integrated watchdog functionality for enhanced operational safety and reliability
Multiple output options, including digital and analogue signals, for flexible integration
| Brand | ifm |
| Series | PG2 |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | -0.0124 bar (-0.2 psi) |
| Maximum Pressure Reading | 0.25 bar (3.6 psi) |
| Accuracy | ± 0.5 |
| Output Type | 4 -20mA, PNP/NPN |
- analog display, pressure switch and transmitter in one unit
- Excellent readability also over a long distance
- Rotatable display with LED bar graph for switch point indication
- Hygienic, robust stainless steel housing for the requirements of the food and beverage industry
- Flush process connection for use in CIP and SIP processes
