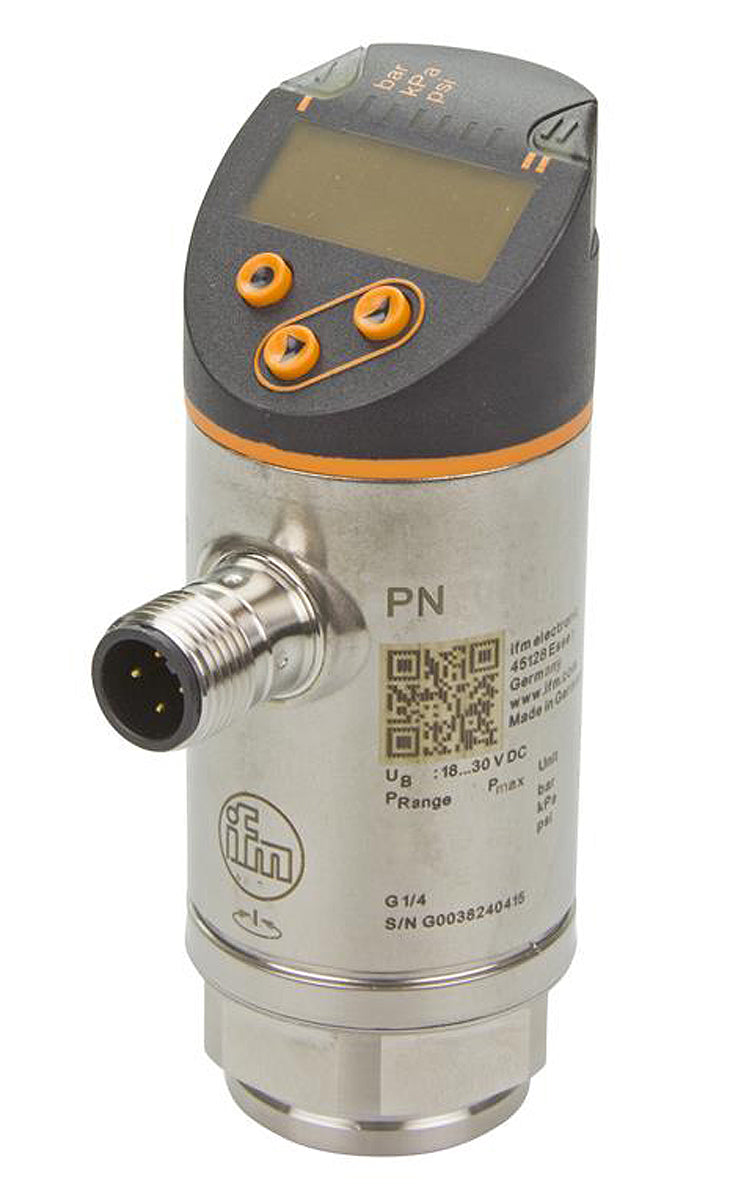

ifm PN2092 | Pressure Sensor | 0bar to 100bar, 0bar to 100bar
The ifm PN2092 is a pressure sensor with pressure range 0bar to 100bar, pressure range 0bar to 100bar and output type Analogue + PNP-NO/NC Programmable. ifm lists programmable switching output with IO-Link and scalable analog output, red/green display for clear identification of the acceptable range and the process connection can be rotated for optimum alignment among its features.
- Pressure Reading Type: Relative
- Pressure range: 0bar to 100bar
- Accuracy: <±0.4 %
- Output Type: Analogue + PNP-NO/NC Programmable
- Media Measured: Fluid
- Process Connection: G1/4
- Electrical Connection: M12 Connector
- Analogue Output: 0 → 10 V, 4 → 20 mA
- Detailed Description
- Specifications
- Features
- Downloads
ifm electronic PN2xxx Series Pressure Sensors
Independent set and reset points
Visualisation of the switching states by clearly visible LEDs
Signal damping, output delay on and delay off times
High overload protection
Highly stable ceramic measuring element is tolerant of overpressures
Low zero offset or drift from ageing, overpressure or temperature
IP 67
| Brand | ifm |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0 bar (0.0 psi) |
| Maximum Pressure Reading | 100 bar (1450 psi) |
| Accuracy | <±0.4 % |
| Output Type | Analogue + PNP-NO/NC Programmable |
| Media Measured | Fluid |
| Process Connection | G1/4 |
| Electrical Connection | M12 Connector |
| Response Time | <1.5 (Minimum Switching Output) ms, <3 (Maximum Analogue Output) ms |
| Maximum Current | 250 mA |
| Supply Voltage | 18 → 30 V dc |
| Housing Material | PBT GF20, PBT+PC GF30, PC, Stainless Steel |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| IP Rating | IP65, IP67 |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Analogue Output | 0 → 10 V, 4 → 20 mA |
| Communication Protocol | IO-LINK |
| Interface | IO-Link |
- Programmable switching output with IO-Link and scalable analog output
- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
