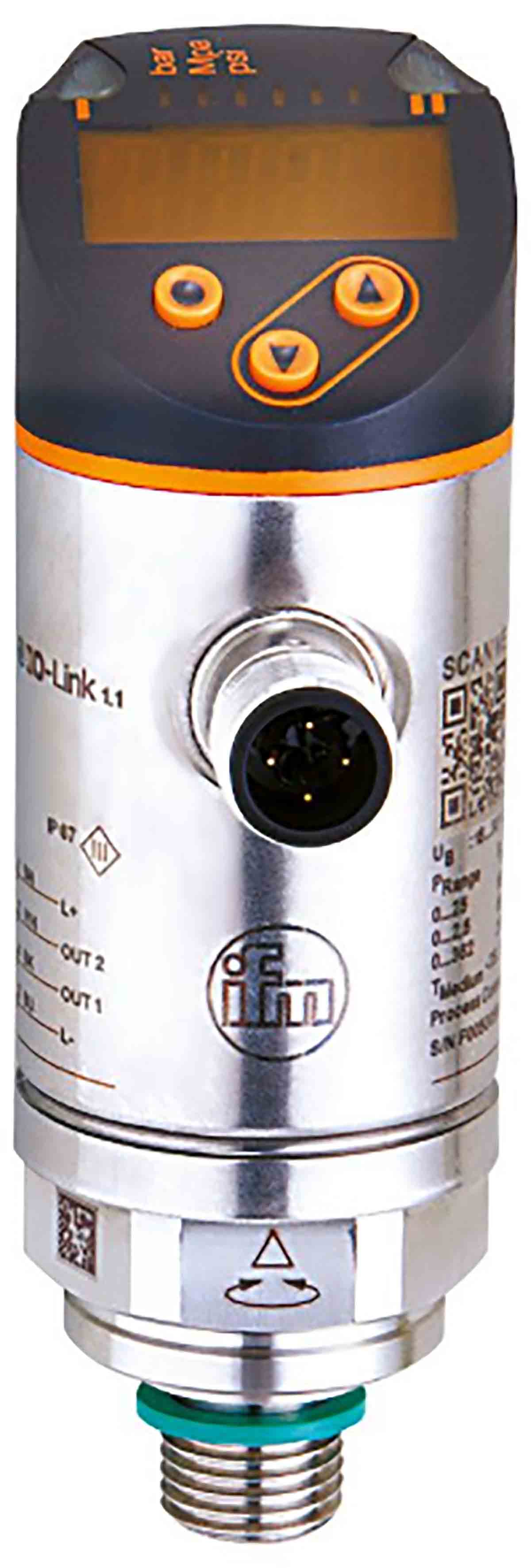

ifm PN2597 | Pressure Sensor | -50mbar to -50mbar, -50mbar to -50mbar
Part Number : PN2597
The ifm PN2597 is a pressure sensor with pressure range -50mbar to -50mbar, pressure range -50mbar to -50mbar and output type Analogue + PNP-NO/NC Programmable.
- Pressure Reading Type: Relative
- Pressure range: -50mbar to -50mbar
- Accuracy: <±0.4 %
- Output Type: Analogue + PNP-NO/NC Programmable
- Media Measured: Fluid
- Process Connection: G1/4
- Analogue Output: 0 → 10 V, 4 → 20 mA
- Electrical Connection: M12 Connector
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
ifm electronic PN2xxx Series Pressure Sensors
ifm electronic PN 2xxx series pressure sensors offers a flexible design that allows the sensor to rotate in any direction once fitted. With selectable dual switched NC/NO outputs or a single switched output and a scalable analogue output. The PN pressure sensors continuously evaluate and show system pressure on a large bright 4-digit alphanumeric display. The display can be switched from the indication of “red” to an alternating indication of “red - green”, highlighting switching states.
Features And Benefits
IO-Link communication
Independent set and reset points
Visualisation of the switching states by clearly visible LEDs
Signal damping, output delay on and delay off times
High overload protection
Highly stable ceramic measuring element is tolerant of overpressures
Low zero offset or drift from ageing, overpressure or temperature
IP 67
Independent set and reset points
Visualisation of the switching states by clearly visible LEDs
Signal damping, output delay on and delay off times
High overload protection
Highly stable ceramic measuring element is tolerant of overpressures
Low zero offset or drift from ageing, overpressure or temperature
IP 67
Pressure Sensors With Electronic Display
| Brand | ifm |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | -50mbar |
| Maximum Pressure Reading | 50mbar |
| Accuracy | <±0.4 % |
| Output Type | Analogue + PNP-NO/NC Programmable |
| Media Measured | Fluid |
| Process Connection | G1/4 |
| Electrical Connection | M12 Connector |
| Response Time | <1.5 (Minimum Switching Output) ms, <3 (Maximum Analogue Output) ms |
| Maximum Current | 250 mA |
| Supply Voltage | 18 → 30 V dc |
| Housing Material | PBT GF20, PBT+PC GF30, PC, Stainless Steel |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| IP Rating | IP65, IP67 |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Analogue Output | 0 → 10 V, 4 → 20 mA |
| Communication Protocol | IO-LINK |
| Interface | IO-Link |
ifm PN2597 | Pressure Sensor | -50mbar to -50mbar, -50mbar to -50mbar
