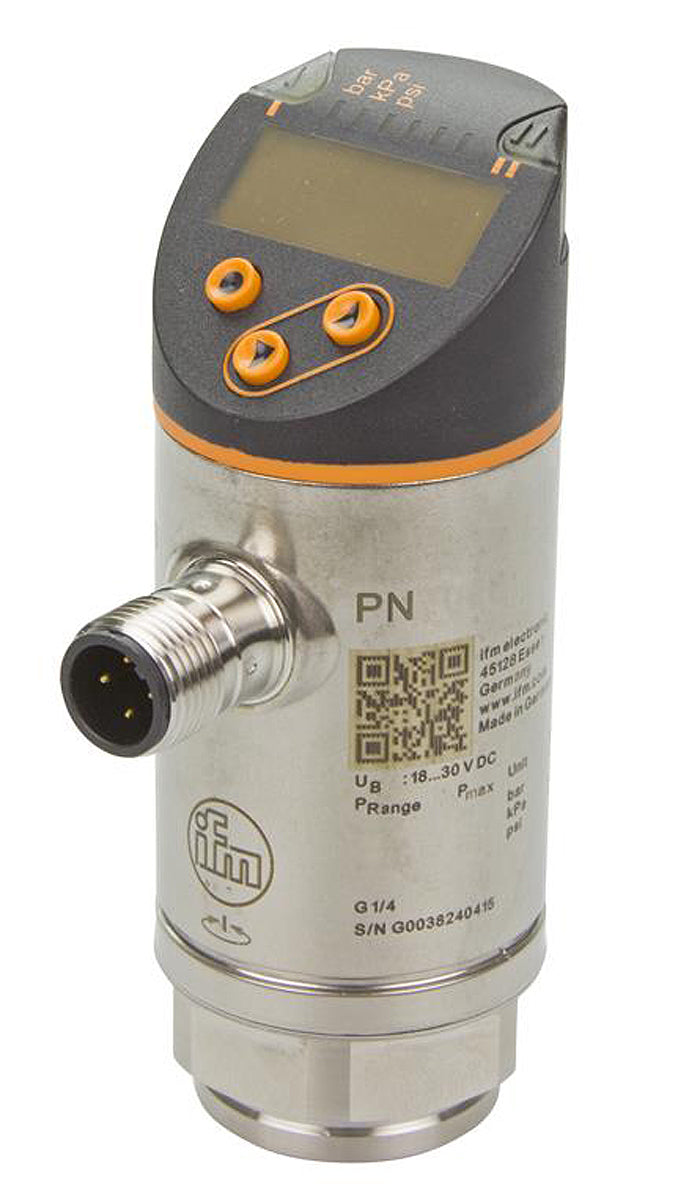

ifm PN7571 | Pressure Sensor | 0bar to 250bar, 0bar to 250bar
The ifm PN7571 is a pressure sensor with pressure range 0bar to 250bar, pressure range 0bar to 250bar and output type 2x PNP/NPN-NO/NC. ifm lists two switching outputs, one of them with IO-Link communication interface, red/green display for clear identification of the acceptable range and the process connection can be rotated for optimum alignment among its features.
- Pressure Reading Type: Relative
- Pressure range: 0bar to 250bar
- Accuracy: ±0.5 %
- Output Type: 2x PNP/NPN-NO/NC
- Media Measured: Fluid
- Process Connection: G1/4
- Electrical Connection: M12 Connector
- Response Time: <3 (Minimum Switching Output) ms
- Detailed Description
- Specifications
- Features
- Downloads
ifm electronic PN7xxx Series Pressure Sensors
Independent set and reset points
Visualisation of the switching states by clearly visible LEDs
Signal damping, output delay on and delay off times
High overload protection
Highly stable ceramic measuring element is tolerant of overpressures
Low zero offset or drift from ageing, overpressure or temperature
IP 67
| Brand | ifm |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0 bar (0.0 psi) |
| Maximum Pressure Reading | 250 bar (3626 psi) |
| Accuracy | ±0.5 % |
| Output Type | 2x PNP/NPN-NO/NC |
| Media Measured | Fluid |
| Process Connection | G1/4 |
| Electrical Connection | M12 Connector |
| Response Time | <3 (Minimum Switching Output) ms |
| Maximum Current | 150 mA @ +60 °C, 200 mA @ +60 °C, 250 mA @ +40 °C |
| Supply Voltage | 18 → 30 V dc |
| Housing Material | PBT GF20, PBT+PC GF30, PC, Stainless Steel |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| IP Rating | IP65, IP67 |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Communication Protocol | IO-LINK |
| Interface | IO-Link |
- Two switching outputs, one of them with IO-Link communication interface
- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
