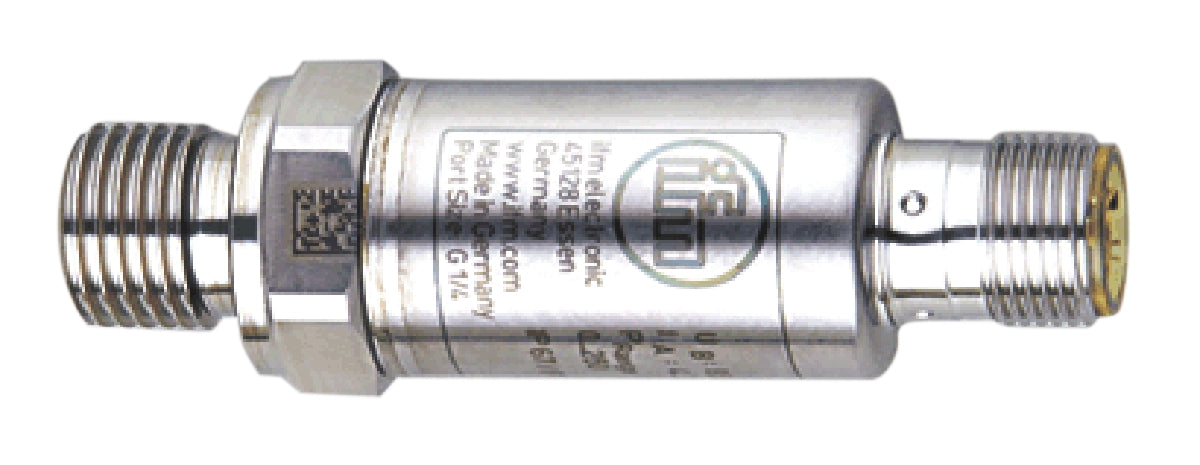

ifm PT5412, Pressure Sensor, 0bar Min, 160bar Max, Analogue Output, Relative Reading

Name: ifm PT5412, Pressure Sensor, 0bar Min, 160bar Max, Analogue Output, Relative Reading
Brand: ifm
SKU: PT5412
Availability: OutOfStock

Part Number : PT5412

Availability: in stock

Specifications
Downloads

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	160bar
Accuracy	±0.5 %
Output Type	Analogue
Media Measured	Gas, Liquid
Process Connection	G1/4
Electrical Connection	M12 Connector
Analogue Output	4 → 20 mA
Response Time	1 ms
Supply Voltage	8.5 → 36 V dc
Housing Material	Stainless Steel
IP Rating	IP67, IP69K
Maximum Operating Temperature	+90°C
Minimum Operating Temperature	-40°C

ifm PT5412, Pressure Sensor, 0bar Min, 160bar Max, Analogue Output, Relative Reading
