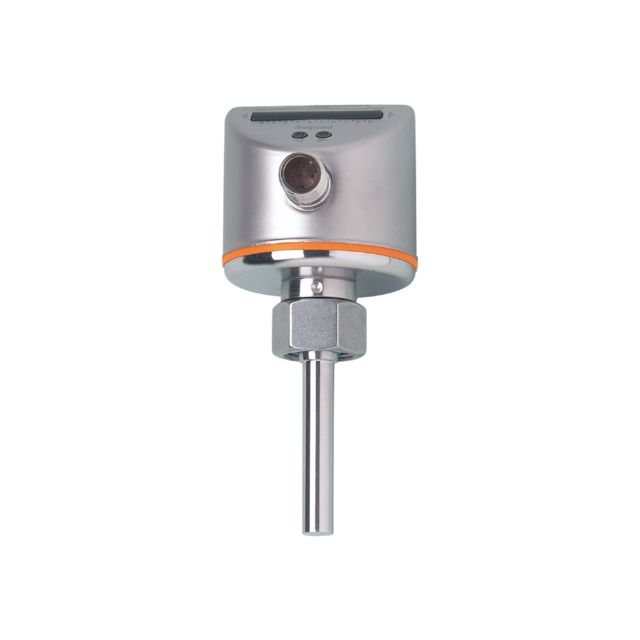

ifm SI5004, SI Series Flow Transmitter Flow Sensor for Liquid

Name: ifm SI5004, SI Series Flow Transmitter Flow Sensor for Liquid
Brand: ifm
SKU: SI5004
Availability: OutOfStock

Part Number : SI5004

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Flow Transmitter is designed for precise flow measurement with a robust set of features. It operates with a voltage range of 19 to 36 V DC and has a current consumption of less than 60 mA. The device is protected to Class III standards and includes reverse polarity protection, with a power on delay time of 10 seconds. It provides a single analogue output signal in the form of a 4 to 20 mA current, supporting a maximum load of 500 Ohm. The transmitter is equipped with overload protection to ensure reliable performance.

Reliable monitoring of liquids and gases in pipes
Variable process connection using adapters
Quick set-up of the sensor
Robust stainless steel housing for use in harsh industrial environments
LED bar graph display for indicating the flow state

Brand	ifm
Media Monitored	Liquid
Device Type	Flow Transmitter
Supply Voltage	36 V
Series	SI
