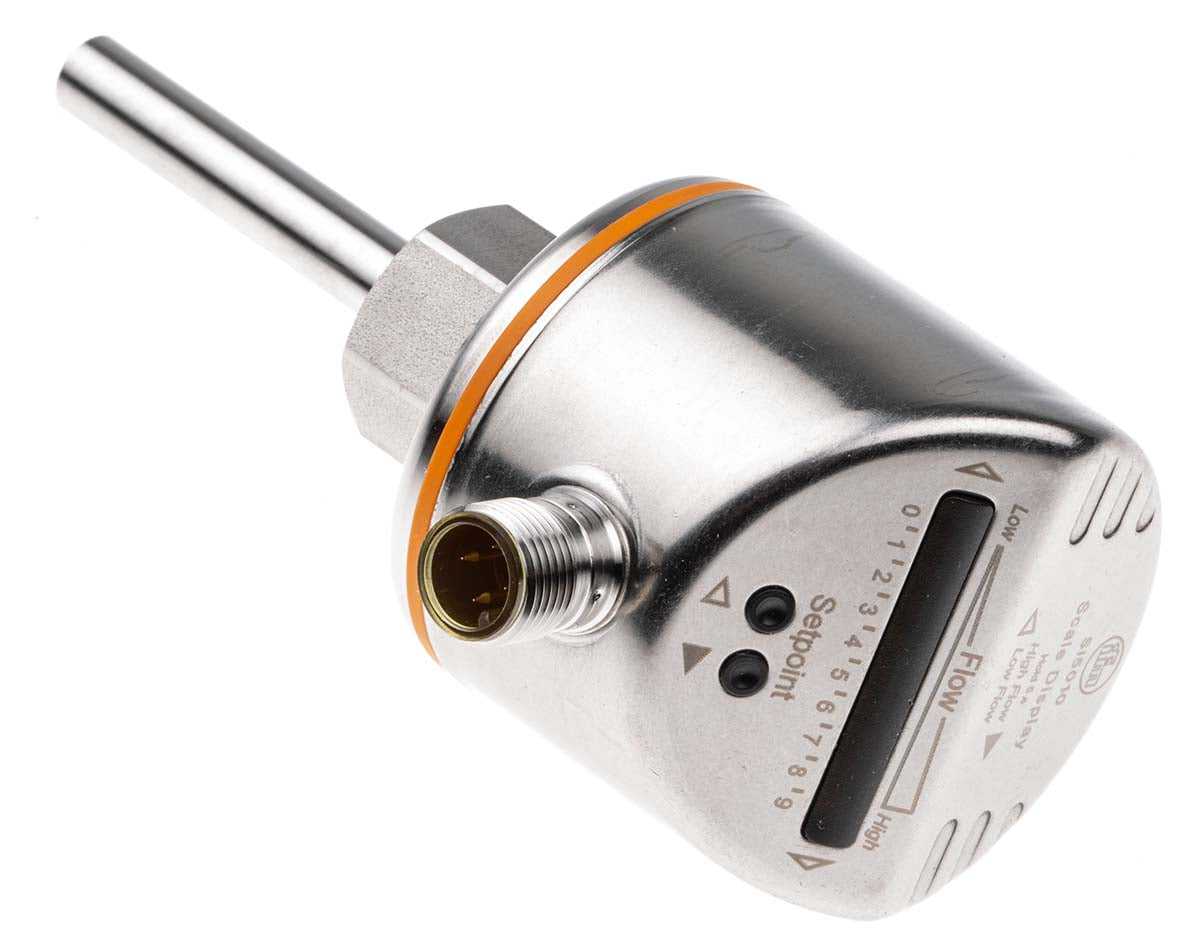

ifm SI5010, Flow Controller, 200 → 3000 (Gas) cm³/s, 3 → 300 (Liquid) cm³/s, PNP Output, 19 →
Part Number : SI5010
The SI5010 flow monitor from ifm measures both liquid (3-300 cm/s) and gaseous (200-3,000 cm/s) media at a pressure rating of 300 bar. Thanks to the variable process connection (internal M18 x 1.5 thread for adapter) the SI5010 flow sensor can easily be integrated in the application. The high protection rating IP67 ensures reliable flow monitoring, for example in cooling circuits on machine tools.
For pricing, please contact our experts.
ifm electronic Flow Indicator
The ifm electronic flow indicator can measures flow rate from 3cm³/s to 300cm³/s for liquid and from 200cm³/s to 3000cm³/s for gas. This indicator has an automatic adjustment to nominal flow and minimum flow via setting buttons or programming lin. It has a supply voltage rating ranges between 18VDC and 36VDC. It is an optical indication of nominal flow, overflow, underflow and flows stoppage via the LED display short-circuit proof, inverse polarity protected.
Features and Benefits
Fast reaction time (1 second to 2 seconds)
Adaptable to various process connections
All the parameters can also be set manually
Locking facility
Current consumption is greater than 60mA
Current rating is 250mA
Voltage drop is greater than 2.5V
Adaptable to various process connections
All the parameters can also be set manually
Locking facility
Current consumption is greater than 60mA
Current rating is 250mA
Voltage drop is greater than 2.5V
Certifications
CE certified
UL listed
DIN EN 61000-6-2
DIN EN 61000-6-3
CRN certified
UL listed
DIN EN 61000-6-2
DIN EN 61000-6-3
CRN certified
