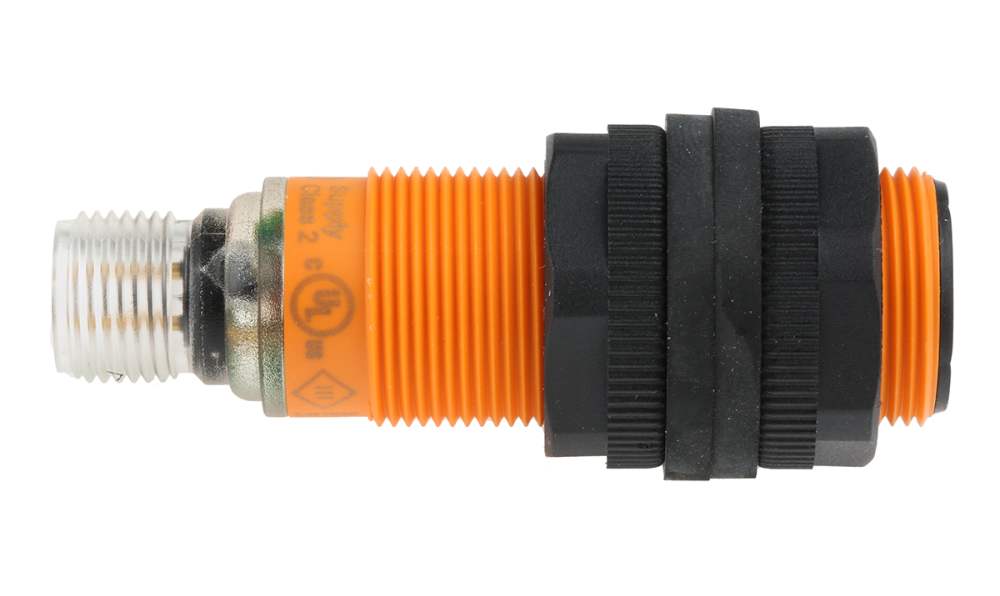

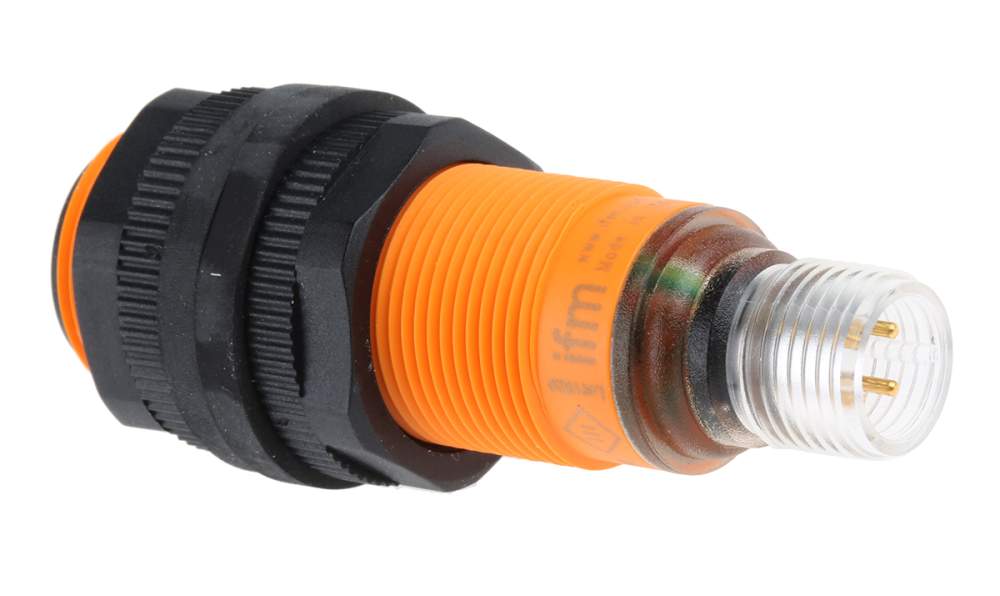

ifm UGT200, Ultrasonic Threaded Barrel Proximity Sensor, M18, 300 mm Detection, PNP NO/NC, 10 → 30 V dc

Part Number : UGT200

Availability: Sold out

Detailed Description
Specifications
Downloads

UGT200 Series Diffuse Ultrasonic Sensors

IFM Electronics UGT200 series diffuse ultrasonic sensors offer an alternative sensing type for long ranges and difficult surfaces. The UGT200 series are able to operate reliably with heavy soiling, allowing them to be used where photoelectric sensors meet their limits.

Ultrasonic sensors transmit and receive sound waves in the ultrasonic range. Objects to be detected reflect the sound waves and distance information is determined via a time of flight measurement. Ultrasonic sensors are able to detect various object types, including colour or transparent objects or objects with a surface shine.

Features and Benefits

M18 Plastic housing
Digital and analogue output
Vibrating sound transducer reduces the deposit of dirt
Wide sensing range
Easy setting via wire or button teach

IFM Electric Ultrasonic Sensors

Brand	ifm
Thread Size	M18
Sensor Technology	Ultrasonic
Detection Range	300 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO/NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	60.5mm
Housing Material	Epoxy Glass Ceramic, PBT, Polyamide
Maximum DC Voltage	30V
Minimum Operating Temperature	-20°C
Reverse Polarity Protection	Yes
Switching Frequency	8 Hz
Standards Met	CE, cULus, cULus Recognised, EN 55011, EN 60068-2-27, EN 60068-2-6, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, UL
Short Circuit Overload Protection	Yes
Maximum Operating Temperature	+70°C
Maximum Switching Frequency	8Hz
Switching Current	35 mA

ifm UGT200, Ultrasonic Threaded Barrel Proximity Sensor, M18, 300 mm Detection, PNP NO/NC, 10 → 30 V dc

DOWNLOAD CATALOG

UGT200 Operating Instructions 0900766b8150b617

UGT200 UGT200 Series 0900766b8150bd6d
