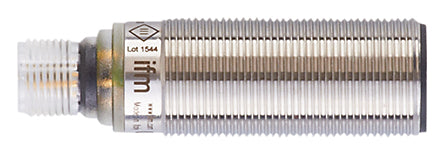

ifm UGT505, Ultrasonic Threaded Barrel Proximity Sensor, M18, 800 mm Detection 0-10 V, 10 → 30 V dc

Name: ifm UGT505, Ultrasonic Threaded Barrel Proximity Sensor, M18, 800 mm Detection 0-10 V, 10 → 30 V dc
Brand: ifm
SKU: UGT505
Availability: OutOfStock

Part Number : UGT505

Availability: Sold out

Detailed Description
Specifications
Downloads

UGT500 Series Diffuse Ultrasonic Sensors

IFM Electronics UGT500 series diffuse ultrasonic sensors offer an alternative sensing type for long ranges and difficult surfaces. The UGT500 series are able to operate reliably with heavy soiling, allowing them to be used where photoelectric sensors meet their limits.

Ultrasonic sensors transmit and receive sound waves in the ultrasonic range. Objects to be detected reflect the sound waves and distance information is determined via a time of flight measurement. Ultrasonic sensors are able to detect various object types, including colour or transparent objects or objects with a surface shine.

Features and Benefits

Robust high grade stainless steel housing
Vibrating sound transducer reduces the deposit of dirt
Wide sensing range
Easy setting via wire or button teach

IFM Electric Ultrasonic Sensors

Brand	ifm
Thread Size	M18
Sensor Technology	Ultrasonic
Body Style	Threaded Barrel
Detection Range	800 mm
Analogue Switching Output Type	0-10 V
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	60.5mm
IP Rating	IP67
Housing Material	Epoxy Glass Ceramic, Polyamide, Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+70°C
Reverse Polarity Protection	Yes
Standards Met	CE, cULus, cULus Recognised, EN 55011, EN 60068-2-27, EN 60068-2-6, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, UL
Switching Current	35 mA
Short Circuit Overload Protection	Yes

ifm UGT505, Ultrasonic Threaded Barrel Proximity Sensor, M18, 800 mm Detection 0-10 V, 10 → 30 V dc

DOWNLOAD CATALOG

UGT505 Operating Instructions 0900766b8150b625

UGT505 UGT500 Series 0900766b8150bd4a
