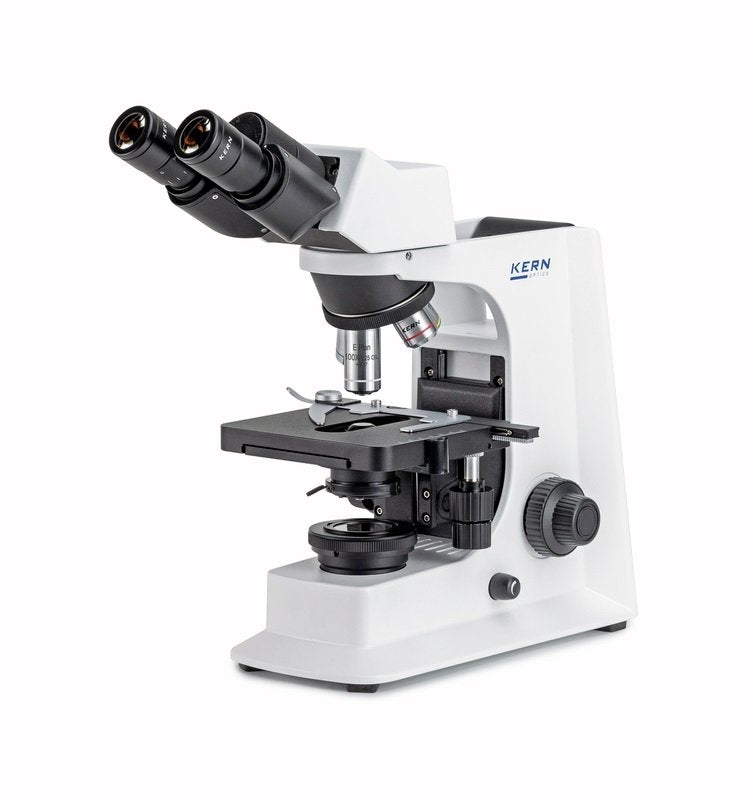

KERN OBL 127 | Binocular Laboratory Microscope | Infinity Optics, 3 W LED
The KERN OBL 127 is a binocular laboratory compound microscope with an infinity optical system for demanding transmitted-light work. A fixed, pre-centred 1.25 Abbe condenser with aperture and field diaphragms gives simplified Koehler illumination with no centring needed.
- Dimmable 3 W LED illumination
- Large mechanical stage holds two specimens at once
- Coaxial coarse and fine focus on both sides
- 10x eyepieces; 395 × 200 × 380 mm
- Specifications
- Features
- Downloads
| Part Number | OBL 127 |
| Brand | KERN |
| Type | Binocular |
| Optical System | Infinity |
| Eyepiece Magnification | 10x |
| Illumination | 3 W LED, dimmable |
| Condenser | 1.25 Abbe, pre-centred, aperture and field diaphragms |
| Dimensions | 395 × 200 × 380 mm |
| Storage Temperature | -5 °C to 40 °C |
- Compound microscopes suitable for laboratories
- a variety of models are available for selection
- comfortable eyepieces for binoculars or trinoculars (depending on model)
- either with a 3W LED light or a 20W halogen light, depending on the model.
- Adjusting the diopter
- Nosepiece can handle up to four goals at once.
- Big stage
- Every model is supported
- Fluorescence, independent phase contrast, polarizing, and darkfield units are optional.
