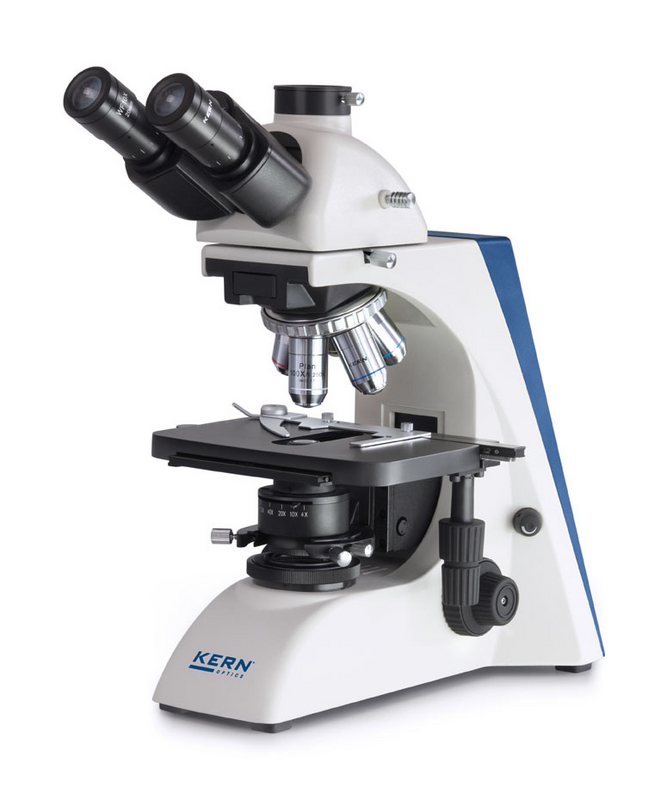

Kern OBN 132 | Flexible Professional Compound microscope | Ocular magnifications 10 x
The ergonomic design and unmatched, constantly high quality of the OBN-series make it stand out. The OBN series can be specifically customized for the professional user thanks to the variety of modular components available.
Philips 20 W halogen lighting (transmitted light)
This series features a height-adjustable 1,25 Abbe condenser with an adjustable aperture diaphragm and a professional Koehler illumination unit with an adjustable field diaphragm.
With the ergonomic, coaxial coarse and fine focusing knobs on both sides of the oversized mechanical stage, you can quickly and precisely alter and focus your sample.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | 390ƒ-200ƒ-400 mm |
Magnification | 10 x |
Storage Temperature | -5 °C to 40 °C |
Type | Trinocular |
- Rotatable microscope head in 360 degrees.
- A binocular viewer with extra room for a digital camera is called a trinocular viewer.
- Abbe condenser for light concentration and focussing with a large numerical aperture.
- LED and halogen lighting (depending on the model chosen)
- normal mains electricity at 230V.
- Versatile design: available options include phase contrast, polarizing, fluorescent illumination, and binocular eyepieces (separately offered).
- accompanied by four achromatic infinity plan lenses (10x, 20x, 40x).
- Up to five objectives can be held simultaneously using a quintuple nosepiece.
- Integrated carry handle for convenient moving.
- Knobs for fine and coarse adjustments.
