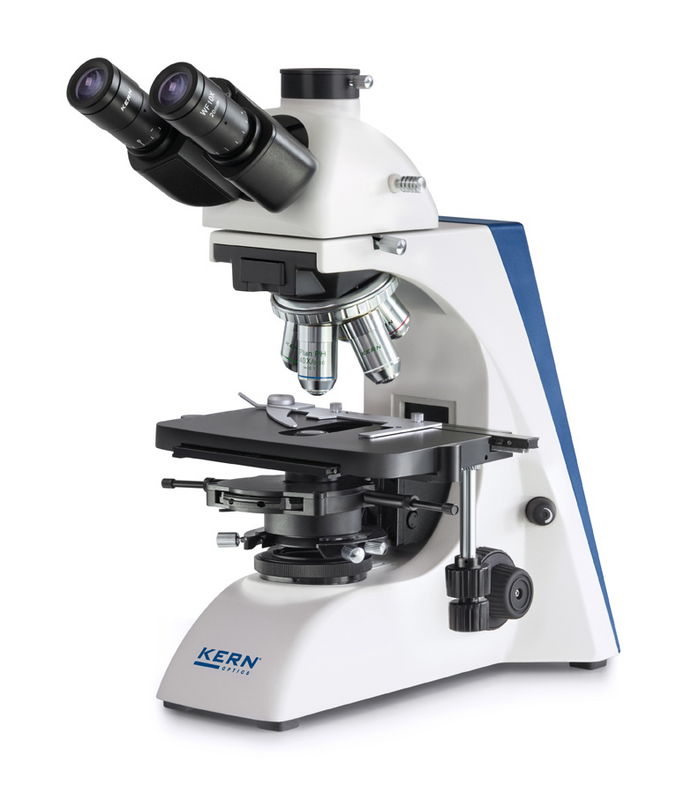

Kern OBN 158 | Phase Contrast Microscope | Ocular magnifications 10 x
The ergonomic design and unmatched, constantly high quality of the OBN-series make it stand out. The OBN series can be specifically customized for the professional user thanks to the variety of modular components available.
Philips 20 W halogen lighting (transmitted light)
A pre-configured phase contrast microscope is a high-quality, fully-equipped microscope for all purposes linked to this contrasting technology. It combines a phase contrast condenser, professional quintuple condenser wheel, and Infinity Plan phase contrast objectives.
This series features a height-adjustable 1,25 Abbe condenser with an adjustable aperture diaphragm and a professional Koehler illumination unit with an adjustable field diaphragm.
- Specifications
- Features
- Downloads
| Dimensions | 390ƒ-200ƒ-400 mm |
| Magnification | 10 x |
| Storage Temperature | -5 °C to 40 °C |
| Type | Trinocular |
- An advanced, top-notch microscope
- Superior phase contrast functionality
- Expert condenser wheel
- Phase contrast aims of the infinite plan: PH10x, PH20x, PH40x, PH100x, and 4x
- Ideal for using phase contrast to view highly translucent, difficult samples with low contrast
- Examine the tissue from microorganisms and living mammals.
- Ideal for use in sewage treatment, water analysis, veterinary medicine, and breweries, among other scientific fields
- robust and always adaptable Philips 20W halogen transmission light source
- Koehler lighting fixture
- PH universal rotating condenser with height adjustment
- Diaphragm aperture
- Diaphragm for field
- Coaxial fine and coarse focusing knobs on the microscope's two sides
- The head of the microscope may rotate 360 degrees. Trinocular microscope
- Attach a camera to the microscope with a C-mount adapter (see "Accessories," NOT included).
- Orienting the eyepiece to modify the phase contrast
