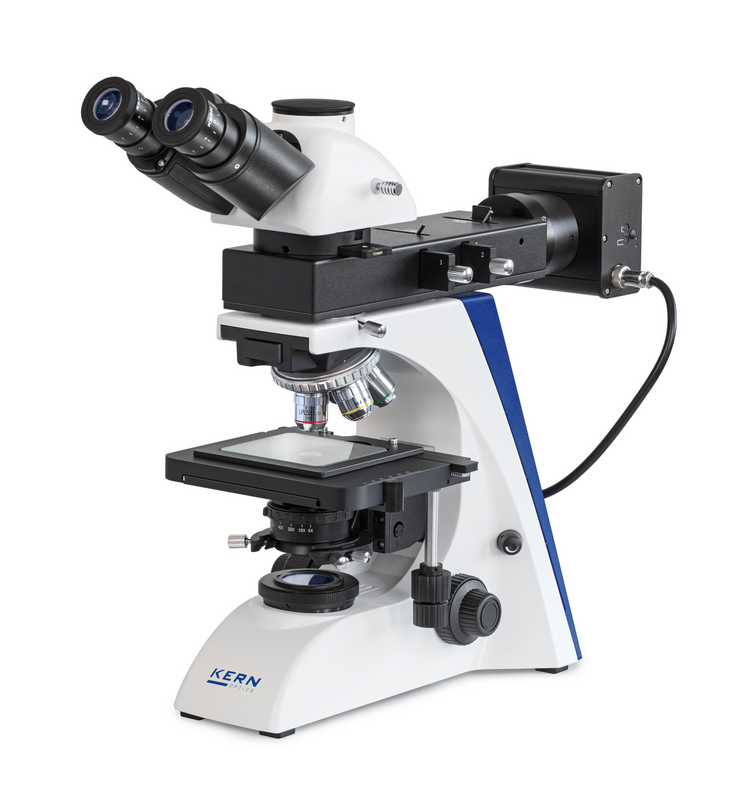

KERN OKO 178 | Metallurgical Microscope | Trinocular, LED Transmitted & Incident
The KERN OKO 178 is a trinocular metallurgical microscope for surface analysis and metal testing, combining LED transmitted and LED incident illumination. A field diaphragm and a height-adjustable, centrable 1.25 Abbe condenser provide Köhler illumination, and an open mechanical stage is fitted as standard.
- LED transmitted plus LED incident illumination
- Height-adjustable 1.25 Abbe condenser, centrable for Köhler lighting
- Basic polarising equipment (polariser and analyser) included
- Supplied with eye cups, dust cover and multilingual instructions
- Camera connection requires a C-mount adapter
- Specifications
- Features
- Downloads
| Part Number | OKO 178 |
| Brand | KERN |
| Microscope Type | Metallurgical |
| Illumination | LED transmitted and LED incident |
| Condenser | 1.25 Abbe, height-adjustable, centrable |
| Stage | Open mechanical stage |
| Included | Polariser, analyser, eye cups, dust cover |
| Camera Connection | C-mount adapter required |
| Dimensions | 550 × 200 × 460 mm |
| Eyepiece Magnification | 10 x |
| Storage Temperature | -5 °C to 40 °C |
| Type | Trinocular |
- Perfect for use with metals and polymers to check for slight damage, for expert metallurgical investigations
- Dual lighting system with transmitting and reflecting halogen lamps that can provide either premium or ordinary lighting
- binocular lens featuring large field of vision
- Abbe condenser with diaphragm aperture
- Four Infinity Plan targets are included as standard (5x, 10x, 20x, and 40x).
- Maximum of five goals can be attached to the quintuple rotating nosepiece.
- 190 x 140 mm mechanical stage with integrated clip
- Polarsing unit is a standard feature.
- Integrated eyepiece scale with 230V mains power
