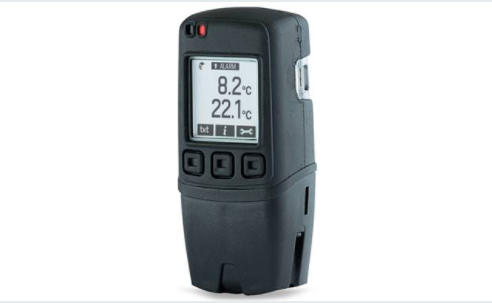

Lascar EasyLog | EL-GFX-DTC Dual Channel Thermocouple Data Logger
This USB data logger records over 250,000 temperature readings per channel in one or more sessions for up to 4 months. It has user-programmable audible alarm thresholds with highly visible confidence/alarm LEDs. It is compatible with K, J and T-type thermocouples. Inside the rugged case, buttons for start, stop and restart and a graphic LCD with on-screen menus provide real-time analysis of data as a summary or as a graph. EL-WIN-USB enables quick configuration and data download via the USB port. Supplied with batteries, two K-type thermocouples and a magnetic wall mount the EL-GFX-DTC is a popular part.
- Specifications
- Features
- Downloads
| Accuracy | +/-1°C |
| Logging Rate | User selectable between 2 seconds and 1 hour |
| Measurement Range (Temp) | -200°C to +390°C |
| Operating Temperature | -10 to +40°C |
| Type | Display |
| Type | USB |
▪ Compatible with K, J and T-type thermocouples with miniature thermocouple plug connections
▪ Stores over 250,000 readings
▪ EasyLog software available as a free download
▪ Logging rates between 2 seconds and 1 hour
▪ Supplied with a pair of 1.5m K-type thermocouples with 0 to 200°C (32 to 392°F) measurement range
▪ On-screen graphing, and menu options to start, stop, review and restart the logger in the field
▪ Immediate, delayed, push-button or temperature triggered start mode
