Lascar EasyLog | EL-SGD 43-ATP Panel Mountable Four-Channel Temp Data Logger

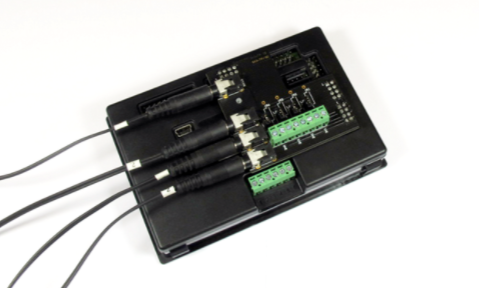

The EL-SGD 43-ATP is a panel-mountable, four-channel temperature data logger based on Lascar’s PanelPilotACE platform. The product includes a 4.3” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board and x4 compatible temperature probes. The user interface comprises an advanced logging application which shows real-time readings for all four temperature channels, live trend graphs and access to a suite of real-time data analysis information. The logger can store up to 100,000 readings per channel at sample rates from 5 seconds to 12 hours.
- Specifications
- Features
- Downloads
| Accuracy (Temperature) | +/-1.0°C |
| Logging Rate | 5 seconds to 12 hours |
| Measurement Range (Temp) | -40°C to +125°C |
| Type | OEM |
| Type | USB |
• 4.3” PanelPilotACE display with mounting kit (SGD 43-A)
• Four-channel thermistor add-on board (S43-TP)
• 4 x 1m thermistor probe with 3.5mm plug (EL-PROBE2-1.0M-TP)
• Mini USB cable (CABLE USB A-MF)
