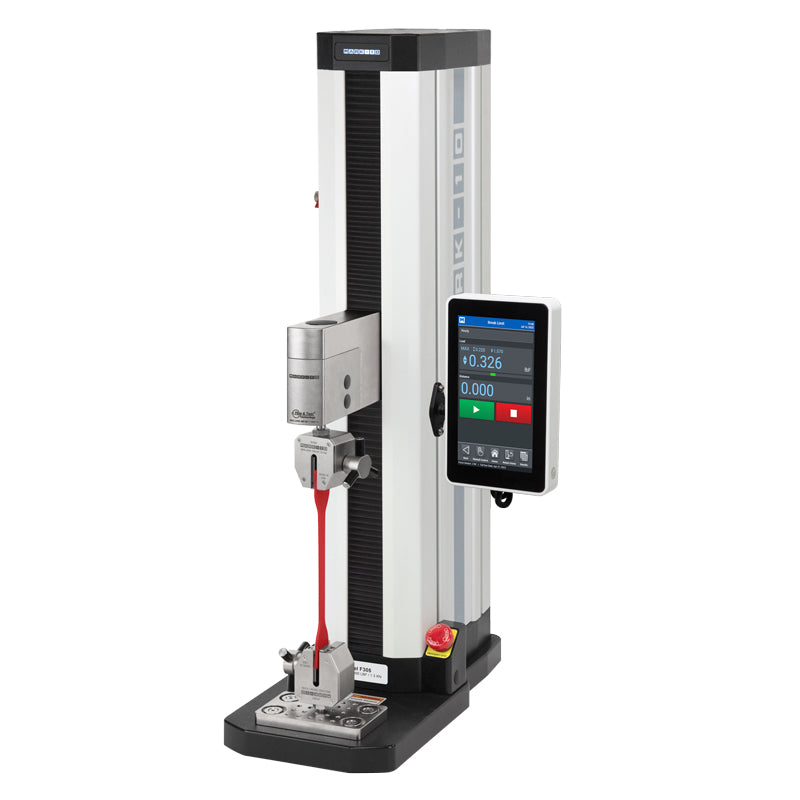

Mark-10 F305-EM | Series F Test Frame with EasyMESUR | 300 lbF / 1.3 kN
Rated 300 lbF / 1.3 kN, the Mark-10 F305-EM pairs a Series F test frame with EasyMESUR software for everyday tension and compression testing. Tests are set up and run on the integrated touchscreen, which also exports results and creates reports; supported routines include break, cycle and load-holding tests.
Key features
- Capacity of 300 lbF / 1.3 kN
- Basic configurable tester for everyday needs
- Easy-to-service electronics
- Modular software platform with optional advanced functions
- External limit switches
- Specifications
| Part Number | F305-EM |
| Brand | Mark-10 |
| Capacity | 300 lbF / 1.3 kN |
| Orientation | Vertical |
| Software | EasyMESUR (integrated touchscreen) |
| Test Types | Break, cycling, limit to load/distance, load holding, average force |
| Limit Switches | External |
| Evaluation Mode | 160 hours, all functions |
Related Products
Mark-10 F305-IM | Series F Test Frame with IntelliMESUR | 300 lbF / 1.3 kN
Mark-10 F305-IM | Series F Test Frame with IntelliMESUR | 300 lbF / 1.3 kN
Mark-10 F105-IM | Series F Test Frame with IntelliMESUR | 100 lbF / 0.5 kN
Mark-10 F105-IM | Series F Test Frame with IntelliMESUR | 100 lbF / 0.5 kN
Mark-10 F505H-EM | Series F Test Frame with EasyMESUR | 500 lbF / 2.2 kN, Horizontal
Mark-10 F505H-EM | Series F Test Frame with EasyMESUR | 500 lbF / 2.2 kN, Horizontal
Mark-10 F505-EM | Series F Test Frame with EasyMESUR | 500 lbF / 2.2 kN
Mark-10 F505-EM | Series F Test Frame with EasyMESUR | 500 lbF / 2.2 kN
Mark-10 F105-EM | Series F Test Frame with EasyMESUR | 100 lbF / 0.5 kN
Mark-10 F105-EM | Series F Test Frame with EasyMESUR | 100 lbF / 0.5 kN

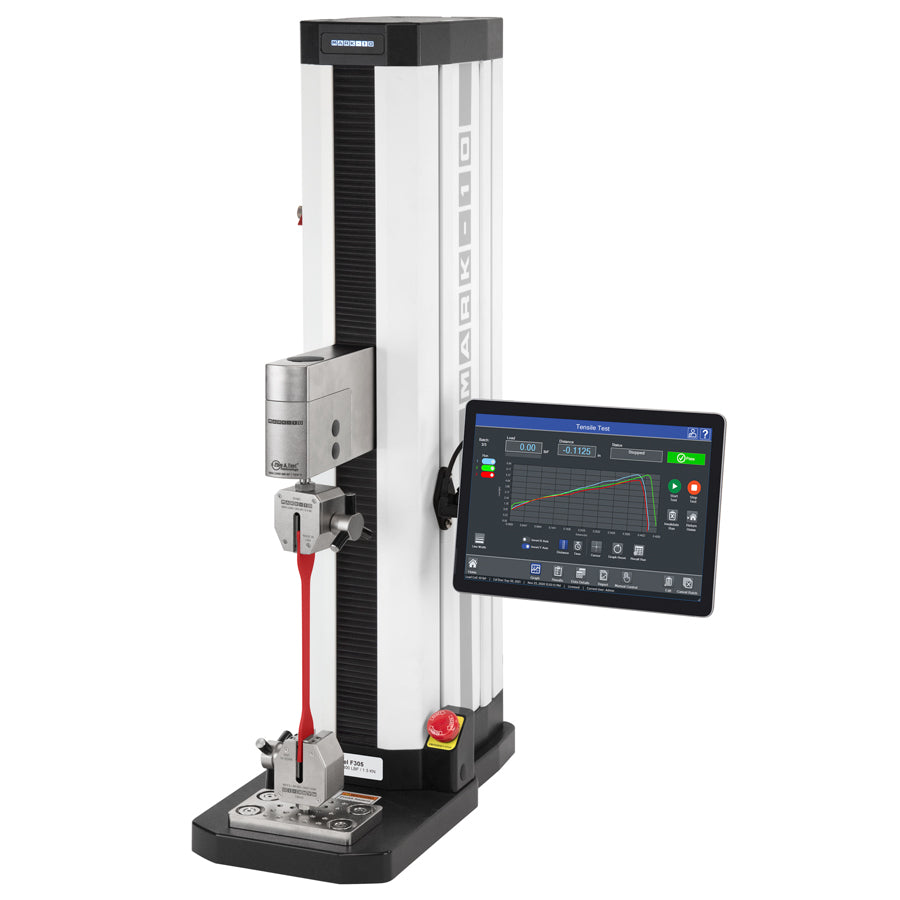

Mark-10 F505H-IMT | Series F Test Frame with IntelliMESUR® | 500 lbF / 2.2 kN, Horizontal
