Matherne HD Heavy-Duty Pressure Chart Recorder | 8 in or 12 in, ±0.5% FS

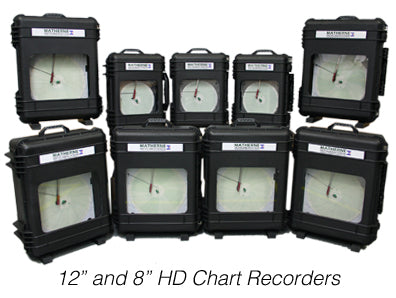

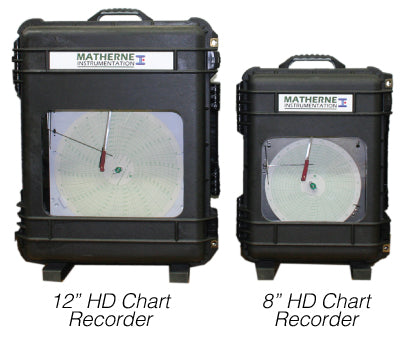

The Matherne HD line records pressure on circular charts in a rugged, crush-proof polypropylene case that resists weathering. A hinged door gives access for chart changes and calibration adjustment, and fittings on the back connect to the system or transmitter. The standard 12 in model and compact 8 in model are offered with one or two pens using any combination of helical pressure elements, calibrated for pressures up to 30,000 psi.
Key features
- Accuracy within ±0.5% of full scale
- Battery-operated electric clock or spring-wound manual clock

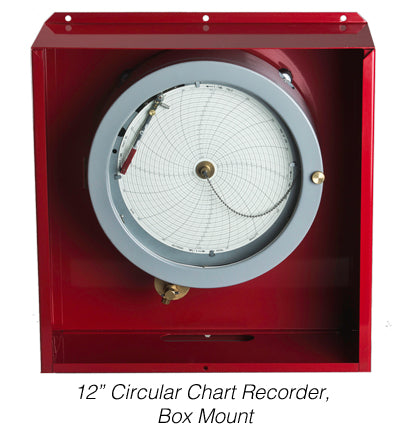

- Wall-mount, pipe-mount or portable versions

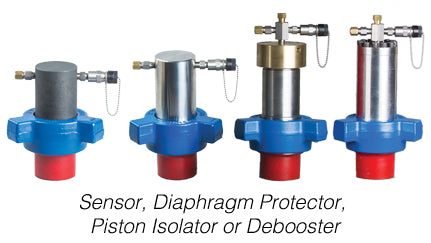

- Works with a sensor, diaphragm protector, piston isolator or debooster
Ordering specifications: recorder size (8 in or 12 in), number of pens, clock type and speed, mounting, hose length and sensor type (if required).
For pricing, please contact our experts.
