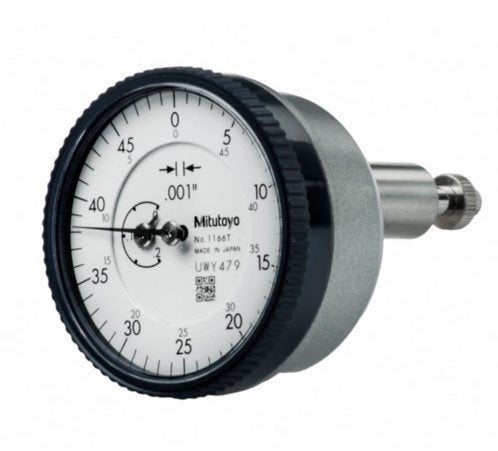

Mitutoyo 1166T | Dial Indicator | Back Plunger | AGD/ANSI | Series 1 | Graduation 0.001inch | Range 0.2inch
Mitutoyo 1166T Dial Indicator offers precise measurement for a variety of industrial tasks. Features a Back Plunger design for easy and versatile mounting in measurement setups. Built to AGD/ANSI standards, ensuring reliable and accurate performance. Part of Series 1, with a Graduation of 0.001 inch for high-resolution measurements. Provides a Range of 0.2 inch, ideal for fine tolerance measurements and alignment checks.
- Specifications
- Features
- Downloads
| Contact point | Carbide tipped, thread: 4-48UNF |
| Digital/Analog | Analog |
| Graduation | 0.001 Inch |
| Hysteresis | 0.00033 Inch |
| Inch-Metric | Inch |
| Mass (main unit) | 80 g |
| Range | 0.2 Inch |
| Repeatability | +/-0.0002 Inch |
| Series | 1 |
| Stem Dia | 9.52 mm Or 0.375 Inch |
| Type | Dial Indicator |
- Model: 1166T from Mitutoyo Series 1
- Range: 0.2 inch – suitable for precise, short-range measurements
- Graduation: 0.001 inch – offers high-resolution precision
- Back Type: Back Plunger – enables easy mounting in various configurations
- Standard: Conforms to AGD/ANSI specifications for consistent performance
- Build Quality: Durable and reliable construction for repeatable and accurate measurements in industrial environments
