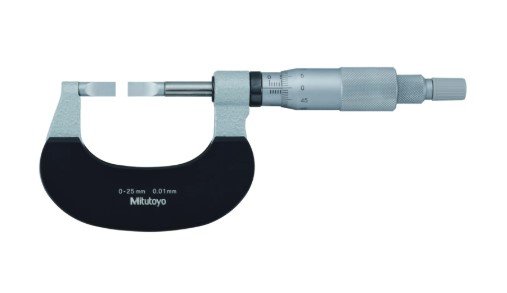

Mitutoyo 122-101-10 | Blade Micrometer | Series 122 | Graduation 0.01mm | Accuracy ±3¼m | Range 0 to 25mm
The Mitutoyo 122-101-10 Blade Micrometer (Series 122) is a precision tool designed for measuring small parts with high accuracy. It offers a graduation of 0.01mm and an accuracy of ±3μm, ensuring reliable and precise measurements. With a measuring range of 0 to 25mm, it is ideal for a wide range of applications. The blade design allows for easy measurement of small and delicate features. Its durable construction ensures long-lasting reliability and performance. This micrometer is perfect for use in manufacturing, quality control, and precision engineering.
- Specifications
- Features
- Downloads
| Accuracy | +/-3 µm |
| Contact point | Carbide-tipped or hardened steel spindle and anvil |
| Digital/Analog | Analog |
| Graduation | 0.01 mm |
| Inch-Metric | Metric |
| Measuring Force | 3 - 8 N |
| Parallelism | 3 µm |
| Range | 0 - 25 mm |
| Scale | Thimble and sleeve satin chrome finish, ƒ ̧18 mm |
| Series | 122 |
| Spindle End | Type A, hardened steel t=0.75 mm |
| Spindle pitch | 0.5 mm |
| spindle size | 6.35 mm |
| Type | Blade Micrometer |
| Weight | 260 g |
- Graduation: 0.01mm for high-precision measurements.
- Accuracy: ±3μm, ensuring reliable and consistent results.
- Range: 0 to 25mm, ideal for measuring smaller components.
- Blade Design: Perfect for measuring small and hard-to-reach features.
- Series 122: Known for precision and durability in various industrial applications.
- Durable Construction: Designed for long-lasting performance and reliability.
Related Products
Mitutoyo 422-231-30 Digimatic Blade Micrometer, Range 25-50mm
Mitutoyo 422-231-30 Digimatic Blade Micrometer, Range 25-50mm

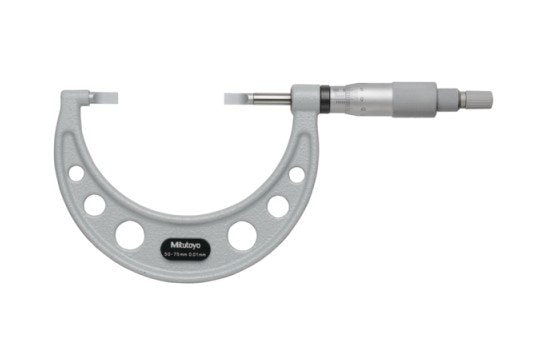

Mitutoyo 122-103-10 | Blade Micrometer | Series 122 | Graduation 0.01mm | Accuracy ± 0.003mm | Range 50 to 75mm
Mitutoyo 122-103-10 | Blade Micrometer | Series 122 | Graduation 0.01mm | Accuracy ± 0.003mm | Range 50 to 75mm

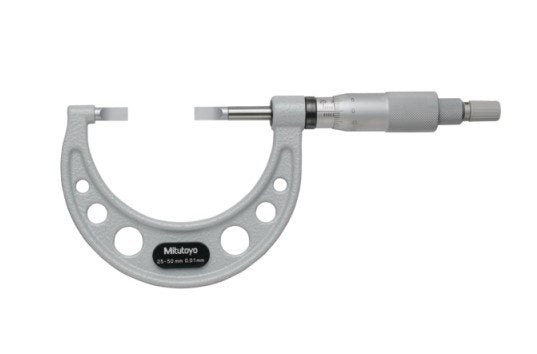

Mitutoyo 122-102-10 | Blade Micrometer | Series 122 | Graduation 0.01mm | Accuracy ± 0.003mm | Range 25 to 50mm
Mitutoyo 122-102-10 | Blade Micrometer | Series 122 | Graduation 0.01mm | Accuracy ± 0.003mm | Range 25 to 50mm
Mitutoyo 122-127-10 | Blade Micrometer | Series 122 | Graduation 0.0001 inch | Accuracy ± 0.00015 inch | Range 2 to 3 inch
Mitutoyo 122-127-10 | Blade Micrometer | Series 122 | Graduation 0.0001 inch | Accuracy ± 0.00015 inch | Range 2 to 3 inch

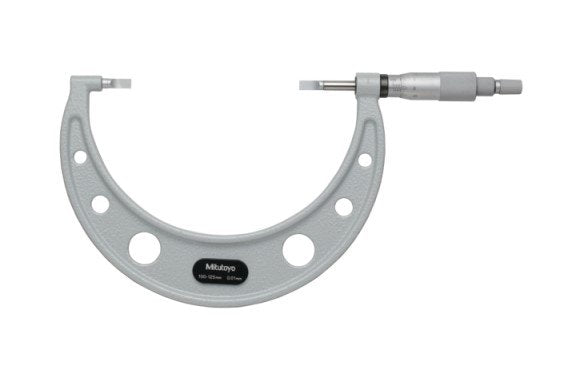

Mitutoyo 122-105-10 | Blade Micrometer | Series 122 | Graduation 0.01mm | Accuracy ±4¼m | Range 100 to 125mm
