Mitutoyo 1230A-01 | Dial Gauge | 2.5 mm Range, 0.01 mm Graduation, Lug Back
Part No. 1230A-01 | Range 2.5 mm | Graduation 0.01 mm
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview

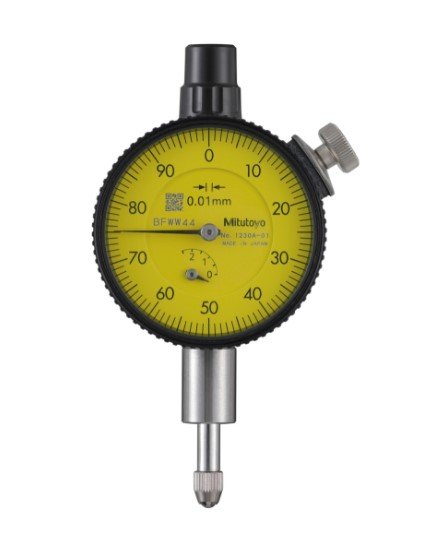

The Mitutoyo 1230A-01 is an ANSI/AGD-type dial gauge with a lug back design, 0.01 mm graduation and a 2.5 mm measuring range. It is designed for routine comparative checks, runout inspection and setup work where a compact measuring range is sufficient.
Built to ANSI/AGD dimensions, the gauge is suitable for use with common stands, fixtures and holders found in machine shops and inspection areas. The lug back provides a dedicated rear mounting point for fastening the gauge to a suitable bracket or fixture, while its mechanical movement supports dependable day-to-day inspection work.
For applications requiring a flat back configuration, consider the Mitutoyo 1230AB-01.
Key Benefits
-
0.01 mm graduation for clear, practical readings
-
2.5 mm measuring range for routine comparative inspection and setup work
-
ANSI/AGD standard design for compatibility with common stands, holders and accessories
-
Lug back for direct mounting to brackets and fixtures
-
Mechanical movement for dependable workshop use
-
Genuine Mitutoyo part supplied and supported locally in Kuwait
Who This Product Is Best For
-
Machinists and inspectors performing routine comparative checks and setup work
-
Toolrooms and machine shops setting up workpieces, fixtures and machine alignment
-
Maintenance teams replacing an existing ANSI/AGD lug back dial gauge
-
Calibration and inspection teams standardizing equipment on Mitutoyo gauges
How to Use It
-
Mount the gauge using its lug back or stem on a rigid bracket, stand or suitable fixture, with the plunger correctly aligned with the measuring surface.
-
Pre-load the plunger slightly against the reference surface, then rotate the bezel to set the dial to zero.
-
Move the workpiece or gauge across the feature being checked and read the deviation directly from the dial.
-
Retract the plunger gently after measurement and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 1230A-01 dial gauge used for?
It is designed for routine comparative checks, runout inspection and setup work. Its 0.01 mm graduation and 2.5 mm measuring range make it suitable for general shop-floor inspection.
What are the graduation and range of the 1230A-01?
The Mitutoyo 1230A-01 has a 0.01 mm graduation and a 2.5 mm measuring range.
What does ANSI/AGD mean on a dial gauge?
ANSI/AGD refers to American Gage Design dimensions used for dial indicators. This standardized design allows compatible gauges to be used with common stands, holders and inspection accessories.
What is the benefit of the lug back?
The lug back provides a dedicated rear mounting point, allowing the gauge to be fastened directly to a suitable bracket or fixture.
Should I choose the lug back 1230A-01 or the flat back 1230AB-01?
Both models have a 0.01 mm graduation and 2.5 mm measuring range. The 1230A-01 has a lug back for mounting to brackets or fixtures, while the 1230AB-01 provides a flat back configuration for stem-mounted setups.
Is the genuine Mitutoyo 1230A-01 available in Kuwait?
General Tech Services LLC supplies the genuine Mitutoyo 1230A-01 in Kuwait. Contact +965 9807 4888 for pricing, lead time and current availability.
Request a quote in under a minute — call +965 9807 4888.
