Mitutoyo 126-127 | Screw Thread Micrometer, Interchangeable Tips | 50-75 mm, 0.01 mm, ±4 µm
Part Number : 126-127

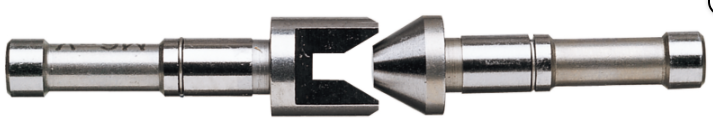

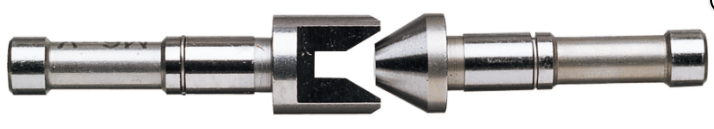

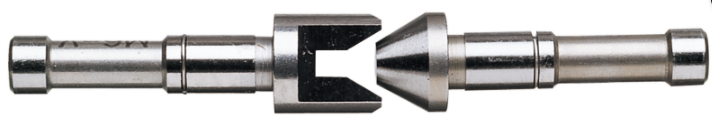

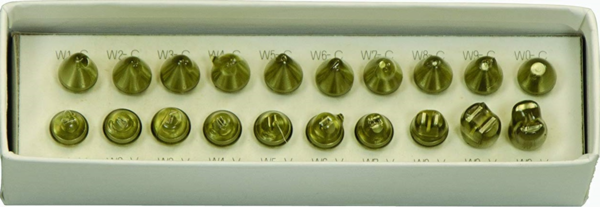

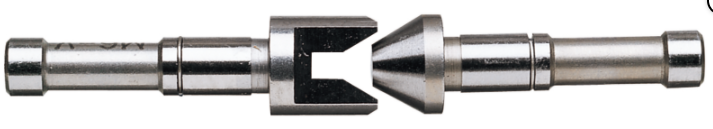

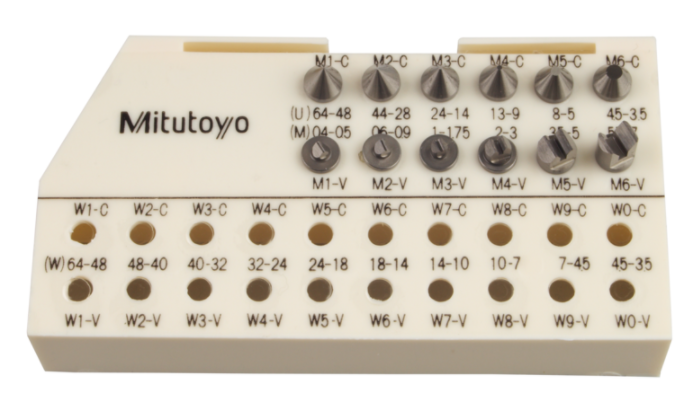

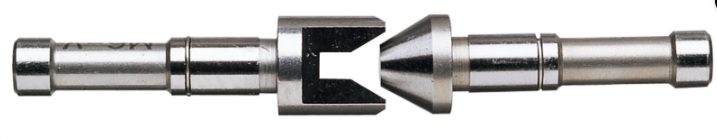

Measuring 50-75 mm in 0.01 mm steps to ±4 µm, the Mitutoyo 126-127 reads screw pitch diameter directly with no calculation. For the 126-127, anvils and spindle points are bought separately and fitted as matched pairs for metric/unified or Whitworth threads.
- 50-75 mm range, 0.01 mm graduation
- Rated to ±4 µm
- Ratchet stop gives a repeatable measuring force
- Lockable Ø6.35 mm spindle, 0.5 mm pitch
- Satin chrome Ø18 mm thimble, 390 g main unit

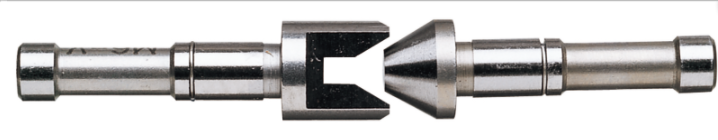

- 60° metric (unified) setting standard included for the 126-127
