Mitutoyo 137-204: Tubular Inside Micrometer, Range 50-1000/0.01mm

Part Number : 137-204

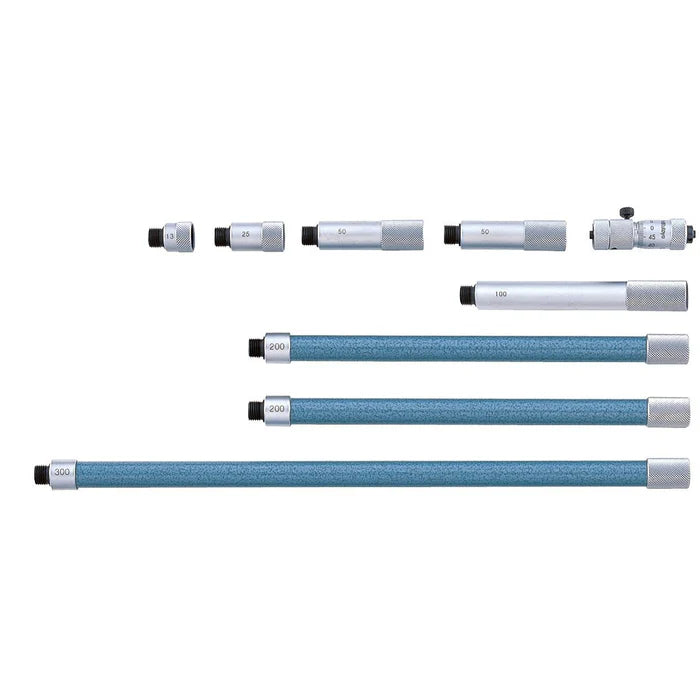

The Mitutoyo 137-204 Tubular Inside Micrometer is an analog measuring device with a 0.01 mm graduation that is intended for accurate internal diameter (ID) measurements in the 50–1000 mm range. A set of interchangeable extension rods are used to increase its range.

Availability: Sold out

Specifications

Range	50 - 1000mm
Travel of micrometer head	13mm
Accuracy	+/-(3+n+L/50)μm L=Maximum measuring length (mm) n=Number of rods Fraction rounded up
Graduation	0.01mm or .001"
Extension rods	13mm, 25mm, 50mm (2 pcs.), 100mm, 200mm (2pcs.), and 300mm
Measuring Method	2-point
Measuring Face	Hardened steel, carbide-tipped faces are available on some models
Scale	Thimble and sleeve with a satin chrome finish
Display Type	Analog (Vernier scale)
