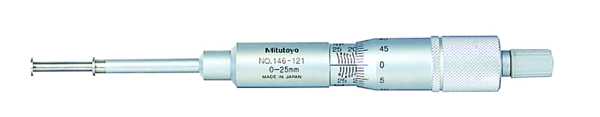

Mitutoyo 146-121 | Internal Groove Micrometer | 0-25 mm, Rotating Spindle, 6.35 mm Flange

Part Number : 146-121

Mitutoyo 146-121 is an internal groove micrometer with a rotating spindle and 6.35 mm flange, measuring the width and position of grooves cut into bore walls over 0-25 mm. A two-directional ratchet stop is fitted to the 146-121, and the scale reads in 0.01 mm steps.

  • Outside range 0-25 mm, 6.35 mm flange, rotating spindle
  • Inside range 1.6-26.5 mm (rotating spindle, 6.35 mm flange)
  • Spindle pitch 0.5 mm, hardened measuring surfaces (0-25 mm, rotating, 6.35 mm flange)
  • Parallelism 10 µm on the 0-25 mm 6.35 mm flange rotating model
  • Mass 135 g; box and key included (146-121 rotating)
