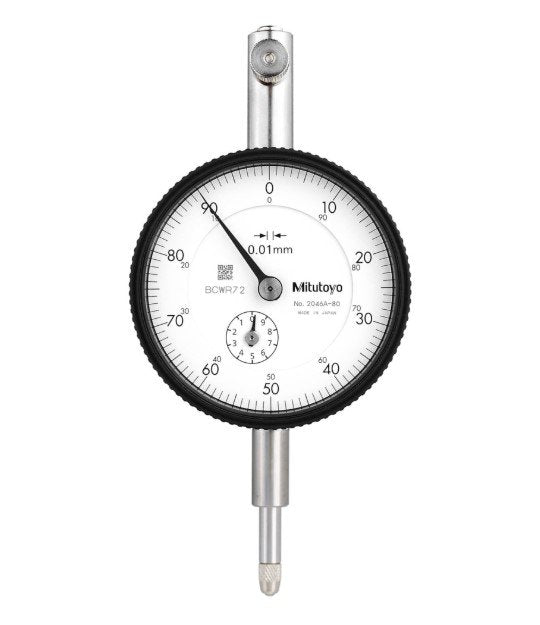

Mitutoyo 2046A-80 | Peak Hold Dial Gauge | 10 mm Range, 0.01 mm Graduation, Lug Back
Part No. 2046A-80 | Range 10 mm | Graduation 0.01 mm
Product Overview
The Mitutoyo 2046A-80 is an ISO-type Series 2 dial gauge with a lug back, peak-hold function, 0.01 mm graduation and 10 mm measuring range. It is designed for long-travel measurement applications including heights, steps, runout and machine alignment.
Made to ISO-type design dimensions, the 2046A-80 should be matched with compatible stands and holders. Its 10 mm measuring range provides extended travel in a single setup, helping users measure larger height differences and deviations without repeatedly resetting the gauge.
The lug back provides a dedicated rear mounting point, allowing the gauge to be fastened directly to a compatible bracket, fixture or machine setup where lug mounting is preferred. The peak-hold function retains the peak reading reached during measurement, allowing the maximum value to be read afterwards.
Its mechanical movement is suited to routine inspection and day-to-day workshop applications. General Tech Services LLC supplies genuine Mitutoyo instruments in Kuwait with support for product selection, pricing and availability.
For a flat back version, see the Mitutoyo 2046AB-80.
Key Benefits
-
0.01 mm graduation for clear and practical readings
-
10 mm measuring range for long-travel inspection
-
ISO-type design for compatible inspection setups
-
Lug back for direct mounting to suitable brackets and fixtures
-
Peak-hold function for retaining maximum measurement values
-
Mechanical movement for routine workshop inspection
-
Genuine Mitutoyo product supplied locally in Kuwait
Call +965 9807 4888 for pricing and stock availability.
Who This Product Is Best For
-
Inspectors measuring heights, steps and runout over a longer stroke
-
Toolrooms and machine shops performing workpiece and fixture checks
-
Maintenance teams replacing an existing ISO-type lug back dial gauge
-
Machine alignment and setup applications requiring extended measurement travel
-
Calibration and inspection teams standardizing equipment on Mitutoyo
How to Use It
-
Mount the gauge securely using its lug back or stem in a suitable bracket, stand or fixture, keeping the plunger square to the measurement surface.
-
Apply a small amount of pre-load to the plunger and set the dial to zero against a suitable reference or master.
-
Move the workpiece or gauge across the feature being inspected and observe the measurement on the dial.
-
Use the peak-hold function when the maximum deviation needs to be retained for reading after the measurement.
-
Retract the plunger carefully after use and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2046A-80 dial gauge used for?
The Mitutoyo 2046A-80 is designed for long-travel measurement of heights, steps, runout and machine alignment. Its 0.01 mm graduation and 10 mm range make it suitable for extended-travel inspection.
What are the graduation and range of the 2046A-80?
The 2046A-80 has a 0.01 mm graduation and a 10 mm measuring range.
What does ISO type mean on this dial gauge?
The 2046A-80 is listed as an ISO-type dial gauge with Series 2 design dimensions. The stand, holder or fixture should be checked for compatibility with this design.
What is the benefit of a lug back?
The lug back provides a dedicated mounting point, allowing the gauge to be fastened to a compatible bracket, fixture or machine setup.
What does peak hold mean on a dial gauge?
The peak-hold function retains the peak reading reached during measurement, allowing the maximum value to be read after the measurement rather than having to observe the pointer at the exact moment the peak occurs.
Should I choose the lug back 2046A-80 or the flat back 2046AB-80?
Both models have a 0.01 mm graduation and 10 mm measuring range. The 2046A-80 has a lug back, while the 2046AB-80 has a flat back. Select the version that matches your mounting arrangement.
Is the genuine Mitutoyo 2046A-80 available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Call +965 9807 4888 for current pricing, lead time and stock availability.
Request Pricing and Availability
For genuine Mitutoyo 2046A-80 supply in Kuwait, contact General Tech Services LLC for current pricing, availability and delivery information.
Call +965 9807 4888 to request a quote.
